主要规格：
1 公称宽度Norminal width;
180型：印花幅宽度1620mm; 200型：印花幅宽度1850mm，同时适用1620mm.
220型：印花幅宽度2050mm，同时适用1850mm. 240型：印花幅宽度22000mm，同时适用2050mm.
260型：印花幅宽度2400mm，同时适用2200mm. 280型：印花幅宽度2600mm，同时适用2400mm.
300型：印花幅宽度2800mm，同时适用2600mm. 320型：印花幅宽度3000mm，同时适用2800mm.
2 公称速度Norminal speed:80m/min
3.印花套色数Number of colors: 4,6,8,10,12,14,16,20
4.适用圆网周长Circumference of screens:640.726.820.914.1018
5.对花精度：相邻花位误差不大于0.1mm，累积对花误差不大于0.3mmRepeat precision: the deviation is less than 0.1mm between two consecutive screen,accumulative repeat deviationis less than 0.3mm

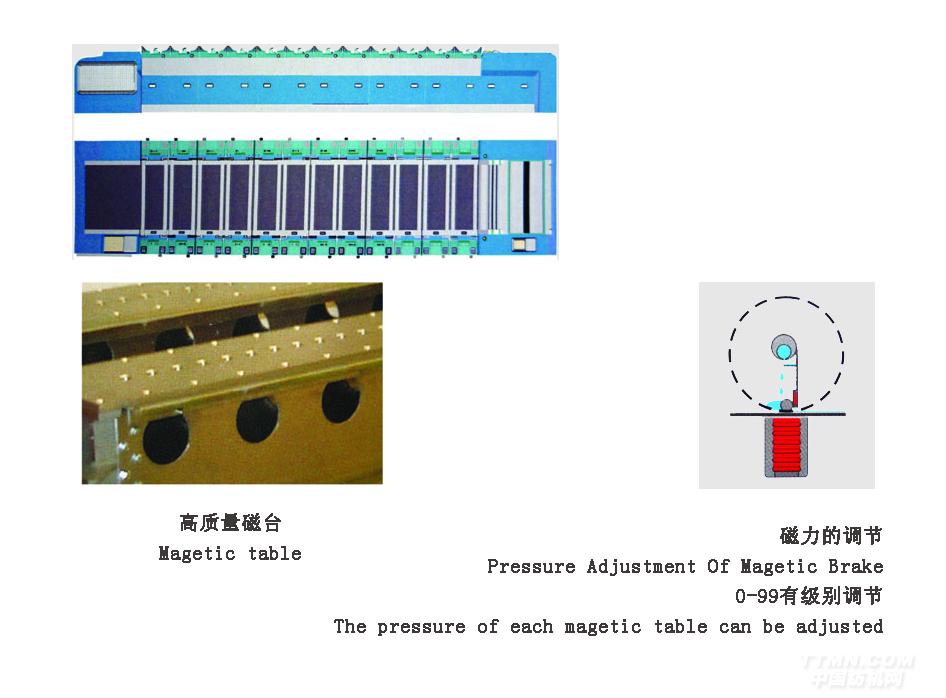

6.刮浆方式Squeegee:磁棒、刮刀或磁棒刮刀组合Magnetic Bar、Scrapping Knife or Magnetic Bar-Scrapping Knife Combination

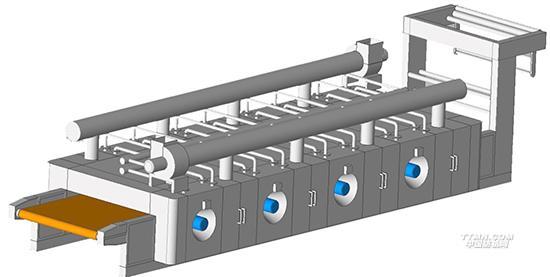

7.烘房节数 Number of dryer section:3.4.5
8.烘房网站Working temperature of dryer:蒸(0.3Mpa)载热油with heat transfer oil≤150℃
9.进出布方式：平幅进布，平幅干落布
Infeed and delivery systen:infeed in open-width,plaiting in dry in open-width

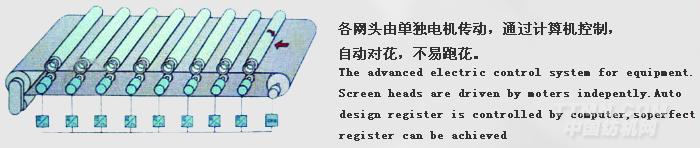

10.传动方式：圆网集体传动或独立传动
Driving system:all screen are driven by the same driving shaft of driven seperately主要规格：
