NK-6开放式圆网印花机(高进布)
本机技术特征：
1.独立伺服/计算机控制

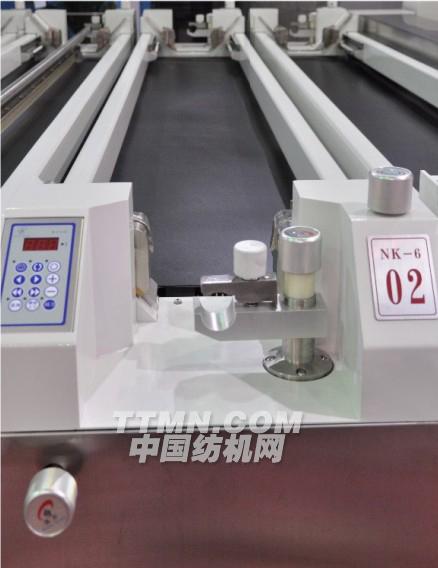

2.稳定性能高：印花单元精密气动控稳
3.抗腐蚀性能高：80%采用不锈钢及抗腐蚀材料
4.机械系统集成化：超低的故障设计理念
5.节能环保的新理念：节电，节水（循环用水）
6.刮刀/磁棒联合机：适合不同克重织物印花
7.对花稳定、灵活：采用进口不锈钢滚珠丝杆。印花台移动无机械间隙

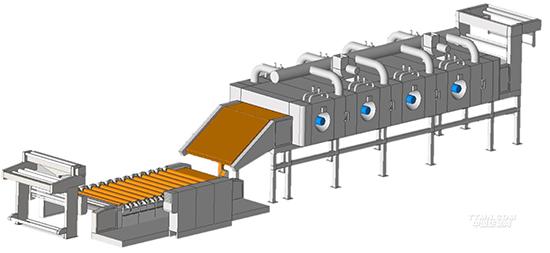

8.高进布烘房,为您节约工作空间。
9.独特的印花系统，上胶，水洗，印花压辊，可以扩展更多的附加系统
10.纠偏采用双重纠偏装置/不锈钢滚轮。红外线探头,确保导带运行平稳
有效印花幅宽：1800-4000（mm)
印花套色数：4-24
圆网花回：640-726-819-914-1018-1200
标准车速：4-100m/min
印花方式：磁棒/刮刀magnetic/ Scraper
对花精度：±0.05mm
传动方式：独立伺服传动

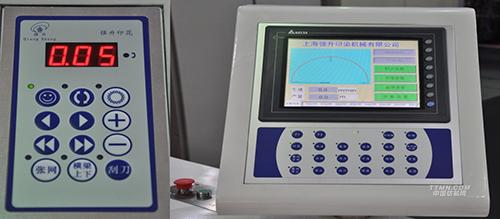

数字主屏：光纤伺服总线控制（中英文）
车别：左手车/右手车(沿布运行方向由传动侧判断)
对花调节范围：纵向360°/横向±20/斜向±10
烘房形式：普通烘房/松式烘房/高进布
热源：导热油160°/天然气180°/蒸汽130°
空气压力：0.6-0.8MPa
水压力：0.3MPa
电力参数：380VAC（±5%）50HZ 3PHASES
接地方式：TN-S
照明电源：220V
防护等级：IP54
总功率≈105-165 KW

NK-6 Open Rotary Screen Printing Machine(Entry in high-width)
The machine technical features:
1.Independent servo/ computer control
2.High stability：printing unit precision pneumatic control stability
3.High Corrosion resistance: 80% of stainless steel and corrosion-resistant materials
4.Mechanical Systems Integration：Low failure design
5.New concept of energy saving and environment protection ,can be save water and electricity
6.Scraper /magnetic rod combination machine：Suitable for different weight fabric printing
7.Printing stable and flexible：Imported stainless steel ball screw.Move the machine without mechanical clearance
8.The dryer with high fabric entry to save your workspace.
9.The unique printing system, glue, washing, printing rollers, you can expand more additional system.
10Correction adopt double correction device,stainless steel rollers. Infrared probe to ensure the conduction band running smoothly.
Printing width：1800-4000（mm)
Colors：4-24
Repeat：640-726-819-914-1018-1200
Speed：4-100m/min
Printing type：magnetic/ Scraper
Printing Accuracy：±0.05mm
Driving：Independent servo
Digital main screen：optical fiber servo main line control system(Chinese-English display)
Machine hand-type：left/right(according to the driving side based on fabric running)
Printing adjusting：Vertical360°/Horizontal±20/Diagonal±10
Dryer type：standard dryers/loosen type dryers/Entry in high-width
Heating source：thermal oil160°/ natural gas180°/steam130°
Air pressure:0.6-0.8MPa：
Water pressure:0.3MPa
Power Parameter：380VAC（±5%）50HZ 3PHASES
Grounding type:TN-S
Illumination：220V
Protective typeIP54
Total power≈105-165 KW
