我公司生产圆网印花零部件已有二十多年的历史，在此基础上与国外合作生产的圆网印花机在电器控制及烘房部分作了改进，使圆网印花机更趋完美。红外对边装置进布、贴布装置、印花采用机械传动和交流伺服独立传动两种，刮印采用气动模块集中控制，电气自动控制色浆液面。

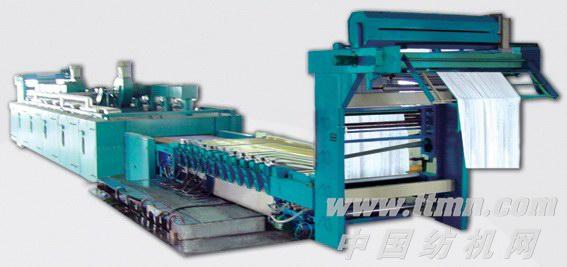

On the basis of more than 20 years experience of accessory production,our company coo-perates with foreign partnership to generate the round-net printing machine,whose improvement on the electrical control and dried-room keep the printing machine better.Units of infrared putting margin,pasting fabric,printing are transmitted by the mechanical and independent servo exchange approach.Scrapend-printing is controlled by pneumatic module;the liquid level of pulp colour is controlled automatically by electric.

主要规格

MAIL SPECIFICATIONS
机械公称宽度：1800-3000mm
（最大印花宽度1650-2850mm）
机械车速：4-80m/min
印花主机：
圆网周长：640AL 819AL 914AL 1018AL
印花套色素：4-16套
对外精度：≤0.2mm
刮印方式：刮刀或磁棒
进布方式：布车进布，面布操作台在左手，浆泵在右手边
电器控制及操作：PLC控制；人机介面操作
印花浆料供应：不锈钢内齿轮泵供浆。
印花导带：进口
Mechanical nominal width：1800-3000mm
(Maximum printing width：1650-2850mm)
Mechanical speed:4-80m/min
Printing Host:
Round-net circumference: 640AL 819AL 914AL 1018AL
Number of priting set: 4-16sets
Precision: ≤0.2mm
Way of Scraped-printing: scraper or magnetic-stick
Way of fabric-input: fabric-input by machine,fabric and starching pump are respectively on the left and right of control board
Electrical control & operation: controlled by PLC; operated with GUI
Starch supply for printing: starch supplied by Hg inside the stainiess gear
Printing belt: imported
