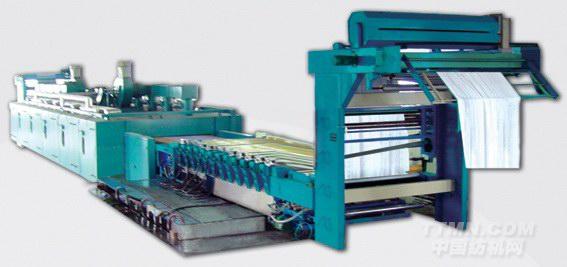

WQ480型圆网印花机

圆网印花机

ROTRY SCREEN PRINTING RANGE

主要规格

MAIL SPECIFICATIONS
        机械公称宽度：1800-3000mm
       （最大印花宽度1650-2850mm）
        机械车速：4-80m/min
        印花主机：
        圆网周长：640AL 819AL 914AL 1018AL
        印花套色素：4-16套
        对外精度：≤0.2mm
        刮印方式：刮刀或磁棒
        进布方式：布车进布，面布操作台在左手，浆泵在右手边
        电器控制及操作：PLC控制；人机介面操作
        印花浆料供应：不锈钢内齿轮泵供浆。
        印花导带：进口
        Mechanical nominal width：1800-3000mm
        (Maximum printing width：1650-2850mm)
        Mechanical speed:4-80m/min
        Printing Host:
        Round-net circumference: 640AL 819AL 914AL 1018AL
        Number of priting set: 4-16sets
        Precision: ≤0.2mm
        Way of Scraped-printing: scraper or magnetic-stick
        Way of fabric-input: fabric-input by machine,fabric and starching pump are respectively on the left
        and right of control board
        Electrical control & operation: controlled by PLC; operated with GUI
        Starch supply for printing: starch supplied by Hg inside the stainiess gear
        Printing belt: imported

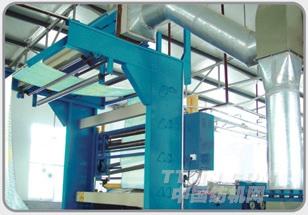

进布装置

FABRIC-INPUT
        进布有拦布器，吸尘装置，自动对边装置
        Unit of fabric-block,cleaner,putting margin in order automatically for fabric-input

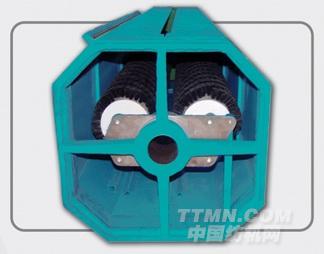

        吸尘装置

FCLEANING UNIT
        二支主动毛刷轮刷毛及集尘器
        Two master brush gears and cleaners


        自动对边装置

UNIT OF PUTTING MARGIN IN ORDER AUTOMATICALLY
         由光电管自动检测探边
         Detecting margin automatically with photoelectrical tube

上浆装置

SIZING UNIT
        水溶性或其他上浆装置选用
        Two master brush gears and cleaners

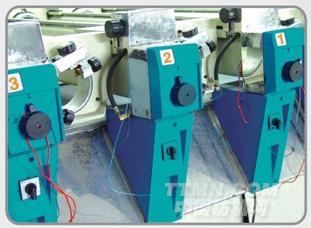

       对花方式

PATTERNING
       采用集体传动和独立传动两种选择
       Two choices of centralized and independent transmission

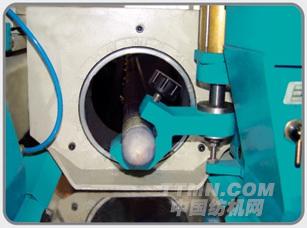

        张网方式

EXPANDING NETWORK
        采用气动张网，可单独手控也可集中控制
        Expanding network pneumatically,controlled manually or centrally

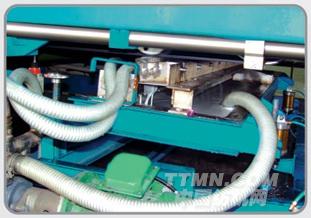

刮浆

SCRAPING STARCH
       采用磁棒或不锈钢刀片，气动方式夹持或磁棒
       Stainless blade fixed with pneumatic method or magnetic stick to scrape starch


调节座总成及配件
Adjusted platform assembly and accessory

刮浆器支承总成及配件
Scraping-starch machine assembly and accessory

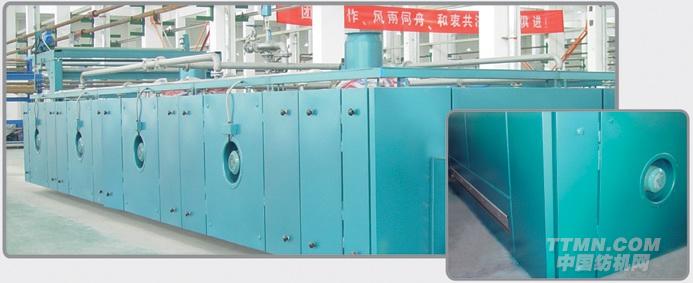

烘房

RRYER OF ROTARY SEREEN PPINTIN MCHINE
进布有平进或斜进布两种，烘房采用三层穿布，积木式设计，每室烘房有二只循环风机、四只散热器，喷风由上、中、下三处同时直接喷向织物表面。
散热器：铝辊轧片式，散热面积约70㎡
热源：蒸气或油加热
蒸发量：150kgH2O/h(室)
烘房温度：蒸汽：100-120℃
油加热：100-160℃
室数：4室（有效穿布长度24米）（可根据要求增加或减少）

There are two approaches of fabric-inpuf:horizontal and declining,3-level of fabric penetration is used for dried-room with block-style designed,each of which have two circulating fans and four radiators.Fabric surface are blew from upper,middle,bottom directions.
Radiator: Aluminm roller style, the raditing syface is about 70㎡
Heat source: vapor or oil-heated
Evaporation: 150kgH2O/h
Dried-room temperature: vapor approach: 100-120℃ oil-heated approach: 100-160℃
Room number: 4(24 m is the maximum length for fabric penetration)
(The length is adjusted according to special requirement)

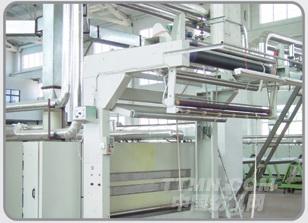

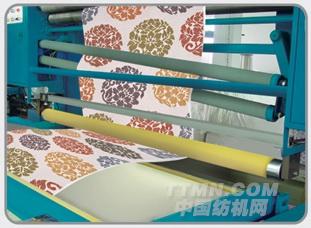

 落布

FABRIC-OUTPUT
        布车落布由气动角位仪控制，落布辊表面包覆糙面橡皮，压布辊装置采用手动压布并配有静电消磁装置。
        全机装机功率：约90KW
        全机重量：约33-41吨
         Fabric-output is controlled by pneumatic angle apparatus,whose roller is wrapped with coarse eraser on the surface;
         Fabric-pressed roller is controlled manually,and equipped with unit of static electricity for magnetremoval.
         Total power:abour 90KW
         Total weight:about 33-41T

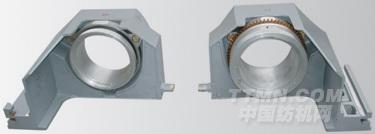

 640型、754型、819型、914型、1018型
         网架总成及配件
         Network-shelf supports assembly and its accessories have following models:640,754,819,914,1018

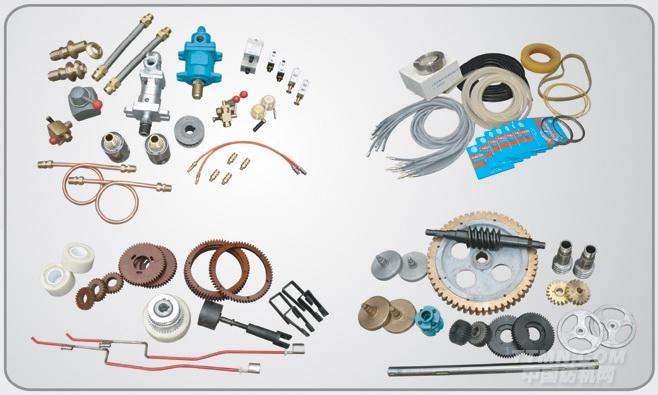

圆网刀片、圆网轴承、夹紧管、胶木齿轮、刹车、离合器、曲线轮、联轴节等
         Round-net blade,round-net bearing,nip tube,bakelite gear,brake,clutch,curvilinear wheel,joint

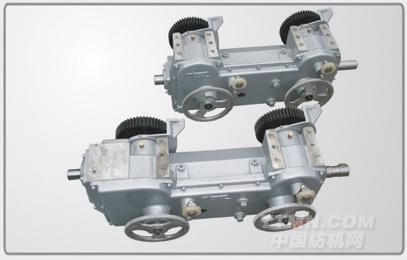

302型、303型对花齿轮箱
         302,303 for patterning gear wheel box and accessory

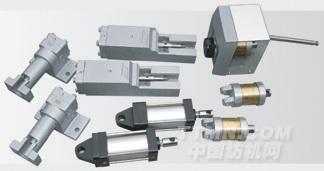

 支承气缸、张网气缸、加压棍气缸、水洗气缸、刮刀气缸
Support cylinder,net expansion cylinder,pressurized stick cylinder, water-washing cylinder,scraper cylinder

磁台、刮浆器、磁棒、卡盘、网梁
        用于：刮刀型改造为磁棒圆网印花
        Magnetic plate,scraping-starch machine,magnetic stuck,block plate,net-shelf application:reform the round-net
         printing fromscraper styleto magnetic-stick style

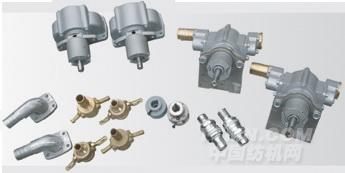

 不锈钢色浆泵及配件、弯管、快装接头
         Stainiess pulp colour pump,bend,simple joint and accessory
