一、机器用途：

本机兼具B702A型摇绞机的优点,具备B702A型摇绞机特点、功能，采用双电机传动,断纱能自停,是较理想的纱线成绞设备。

二、主要技术参数：

1、形式：双面上喂入框式

2、锭数： 80锭

3、纱框周长调节范围：

1300mm-1650mm

1600mm-2100mm

4、纱框转速：1：200转/分  2：240转/分

5、导纱杆每行程距离：600mm-1250mm

6、外形尺寸：6110×1910×1760mm(长×宽×高)

7、电机功率：0.75KW

8、重量：1800公斤

注：本机型在完善客户所需导纱杆每行程距离600mm-1250mm要求情况下，同样完成80锭绞纱工艺，生产工艺绞纱产量可提高25%。

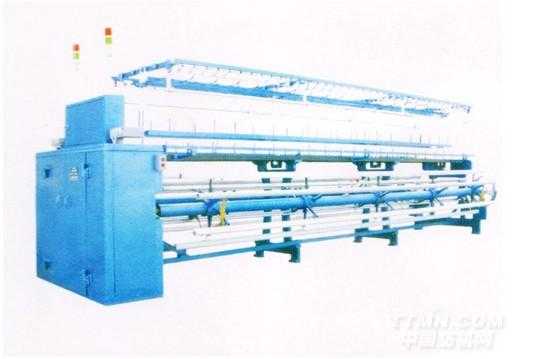

B701-1A-type rolling cutter machine

1, the machine uses:

The machine combines B702A-type stranding machines shake the advantages B702A-type rolling cutter machine with features, functions, using dual-motor drive, break yarn, who could stop, is an ideal yarn into a twisting device.

Second, the main technical parameters:

1, Type: double-sided on the feeding frame

2, Spindle number: 80

3, yarn box circumference adjustment range:

1300mm-1650mm

1600mm-2100mm

4, yarn frame speed: 1:200 r / min 2:240 rev / min

5, guide bar yarn distance of each stroke: 600mm-1250mm

6, Dimension: 6110 × 1910 × 1760mm (length × width × height)

7, motor power: 0.75KW

8, weight: 1800 kilograms

Note: This model in improving the customer's needs yarn guiding rod travel distance of 600mm-1250mm each request case, the same process to complete 80 hank, yarn production process yields can increase by 25%.
