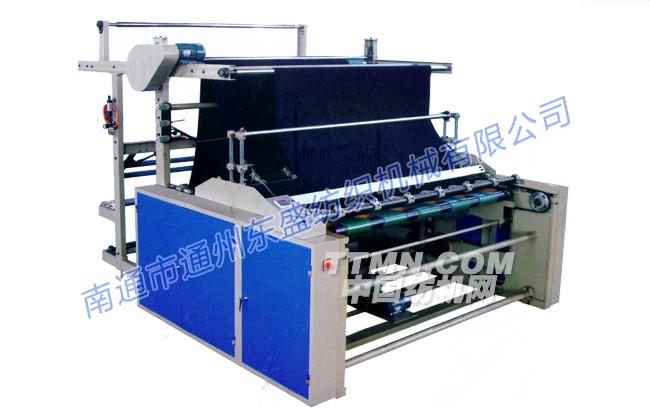

GA841无张力型自动码布机(GA841 No Power-up Automatic Holding Machine)
发布时间:2014-07-04
用途 Purpose
该机适用于印染厂、织布厂,丝织厂整理工场成品或半成品布按定长折叠成匹并计长。
It applies to printing and dyeing, weaving factory, silk factory finishing factory finished or semi-finished cloth by folding into a fixed-length piece.
主要特点 Characteristics
1. 采用红外光电对中装置,使布边整齐。
2. 双变频:主动送布,实现无张力状态码布,无拉毛、坏布现象,彻底解决了薄形、光滑丝织物,弹力布料无法码布的难题。
3. 采用无触点、感应式电子计数器,计数准确、可靠。
1. The use of photovoltaic in the infrared device, so that the fabric edges neatly.
2. Double-conversion: take the initiative to send fabric, no rough-cast, gray cloth, completely solve the problem of thin shape, sleek silk fabric, elastic fabric.
3. Use of non-contact, electronic sensor-counter, counting accurate and reliable.
技术参数 Technical parameter
型式 Type |
平面往复式 Plane reciprocate |
折叠高度(mm) Height of folding(mm) |
170 |
折叠速度(m/min) Speed of folding(m/min) |
60
|
公称宽度(mm)2000型为例 Nominal width (mm) of type 2000 |
2000 |
外形尺寸:长*宽*高(mm) Form size: length*width*height(mm) |
3330*2650*2300 |
重量(kg) Weight(kg) |
2100 |
规格(cm) Specifications (cm) |
180-360任选 optional |
