细纱机

发布时间:2012-09-20

细纱机

细纱机

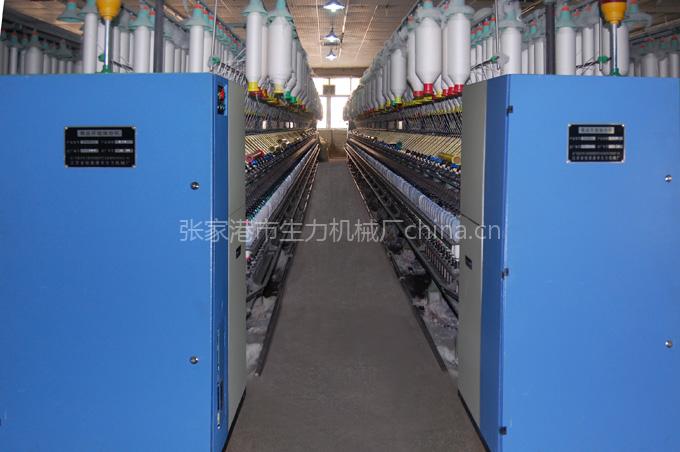

FA507型细纱机 FA507型细纱机是我厂生产的主要产品之一,本机可用于棉及棉型化纤的纯纺或混纺,调换部分零件后,还可适用65mm以下中长纤维。 Model FA507 Ring Spinning Frame is one of our major products,This machine is used for processing cotton and cotton type synthetic fibers,or their biends Medium length synthetic fibers,up to 65mm can be processed on this machine if a few parts are replaced.

主要特征 MAIN FEATURES 机身窄、左右锭子中心距700mm,空间利用率大。采用先进的电子技术器。自动化程度高,由程序控制器控制纺纱过程中的动作。可适用电动落纱机,落纱无需预拔官纱。Narrow machine width,and 700mm distance between the centers of the two opposite spindles on either side of the machine can make the space utilized Effectively.Modern electronic counter.Intensive Automation with a program controller to montitor various motions in spinning process.Doffing with an electric Doffer needs no cops pulling in advance.断面参数设计合理 OPTIMUM FRAME COROSS SECTION PARAMETERS本机的断面参数系根据大量科学实验,从中选择最优方案设计的,经过适用证明导纱角范围、最小气圈高度参数均有利于改善捻度传送和控制纺织张力,因此可提高锭速,减少纺纱断头。 Optimum parameters of the frame cross-section are determined on the basis of extensive scientific research.Spinning practice proves that the proper range of the angle of thread in clination and the minimum balloon heitht are beneficial to improve twist transmission and thread tension control.As a result FAS03 spinning machines run at higher speed with less end break.牵伸传动 DRAFT GEARING 牵伸装置采用螺旋弹簧加压的摇架,压力稳定可靠,操作方便。可配备各种国产棉方摇架及SKF、PK200系列。Ritte,PS160 P3等国外摇架的牵伸系统。可配备新型电动落纱机。 The drafting roller weighting by spring pendulum arm reliable and easy to poerate.Drafting system able to be equipped with either various domestic rocker aims for cotton spinning or many forengn pendulum arms of SKF PK200 series,Rieter PS3,ets. Magnetic clearer roll for clearing front roller.Newly-developed electrical doffer for option.

牵伸装置 DRAFT牵伸装置采用螺旋弹簧加压的摇架,压力稳定可靠,操作方便,定期供油。 The whole system of draft gerring inside the cover is of strong construction with the assurance of correct transmission,and oiling to be periodic.车头传动 HEADSTOCK GEARING 采用同步齿形带传动,有效的降低噪音。改变纱线支数、捻度及牵伸倍数的变换齿轮数,应用优化设计,且能互换使用,便于管理。传动系统采用中央润滑方法,定期供油。车尾面板上集中了所有电器操作原件,便于操作,同时能显示运转状况下的锭速,输出速度及捻度。 The use of a timing belt at the inpoutend of the driving shaft makes possible alow noiselevel.The tooth-figure of the Change gears for matching different amount twists and draft Ratios are of optimized design so that the change gears are Interchangeable and management.The application of A centrallu brication system to the transmission parts enables Oiling to be periodic.The control panel of the machine and contains the manipulation elecments for all the electric devices,having the convenience of manual operation to display the spindle speed outlet speed and twist.自动化程度高HIGH AUTOMATION1.纺纱过程中,任何时候关车,能自动适应停车。Whenever the frame is required to stop during spinning the frame can stop automatically at a proper position. 2.如需提前落纱,能使钢领板自动下降及适应停车。If doffer is required in advance.the ring rails will automatically wind down and stop at a proper position. 3.满管后,钢领板自动下降及自动适应停车。For full bobbins,the ring rails will down to starting position automatically. 4.开车前能使钢领板自动复位。While starting the machine,the ring rails will reset themselves at starting position automatically. 5.落纱前能自动接通落纱电源。Before the doffing,the doffer electric source can be connected cutomatically. 6.开车后低速自动切换高速。After start of machine,the speed is changed from low to high automatically.主要规格与技术参数: 锭数:504;492;480;456;420;408;396;384;96锭距(mm):70锭速(rpm):10000~17000钢领直径(mm):38;42;45筒管长度(mm):180;190;205;230适纺号数(tex):6~96牵伸倍数:10~50牵伸型式:三罗拉,双皮圈,摇架加压罗拉直径(mm):前、中、后均25粗纱卷装(mm):吊锭Φ135×320        (max)Φ152×406粗纱架:托锭支承或单层四、六列吊锭支承 电动机: 主电动机  380伏,15千瓦(456锭及以下)      380伏,17千瓦(456锭以上) 吸风电动机 380伏,1.5千瓦(420锭及以下)      380伏,2.2千瓦(420锭以上) 钢领板升降电动机:380伏,180瓦 全机长度(mm):L=1890+(N/2-1)×70,(N-锭数)全机宽度(mm):1000全机高度(mm):2050 MAIN SPECIFICATIONS AND TECHNICAL DATA: No.of spindles: 504;492;480;456;420;408;396;384;96Spindles guage:70mmSpindles speed: 10000~17000rpmRing dia: 38;42;45mmTube length: 180;190;205;230mmCounts:6~96 texDraft:10~50Draft system:3-roller,double apron,pendulum weighting armRoving package:front,middle,back all 25mmRoving package: Φ135×320suspension bobbin(max)Φ152×406mmCreel:roving bobbins rested on the holders or single tier.4.6 row with suspension bobbinsMotors:Main motor:380V,15Kw(for spindle no.≤456)     380V,17Kw(for spindle no.>456)     80V,1.5Kw(for spindle no.≤420)     380V,2.2Kw(for spindle no.>420)Ring rail lifting motor:380V,180WMachine length:L=1890+(N/2-1)×70mm(N:No.of spindles)Machine width:1000mmMachine height:2050mm
