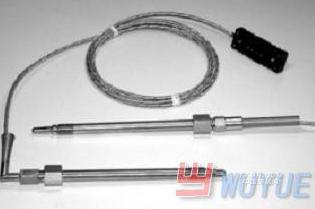

PT300 temperature transmitter-conical probes

发布时间:2013-08-06



Feature and usage:
Temperature transmitter is suitable for high temperature melt and liquid and gas’ temperature measurement. The sensitive part uses the conical shell, whose depth is customized, probes is placed in measuring medium, making it more accurate, less operating time, easy to use. Widely used in petroleum, chemical, rubber, plastic, water treatment, medicine, food and other industries.Characteristic: high precision, stainless steel package, easy installation, to replace the similar imported product, 80% internal calibration stability, good repeatability performance
Index:

1:conical probes design,

2: 0…0.1bar to 0…2500bar pressure measuring.

3:connector or directly connect.

4:various pressure interface.

Parameter


range(psi) 0-500;0-750;0-1,000;0-1,500;0-3,000;
     0-5,000;0-7,500;0-10,000;0-15,000;
     0-20,000;0-30,000
accuracy: ±0.5%full scale

measuring elements: Wheatstone bridge
bridge resistance: output >345Ω;output:350Ω±10%
full scale output:3.33mV/V±2%
zero balance:±10% full scale

diaphragm: max temperature :750'F(400℃)
melt temperate influence zero drift:<25psi/100'F(45psi/100℃)
the max working temperature of strain gauges:250'F(121℃)
zero drift of temperature influence:<±0.05% full scale /'F
(±0.10% full scale /℃)
sensitivity:<±0.02% full scale /'F
    (± 0.04% full scale /℃)
repeat accuracy: ±0.2% full scale
max over pressure:less than full scale 2 times more or 35,000psi
contract material:15-5PH stainless
        steel and Armoloy coating.

power voltage: recommended voltage:10VDC,max 12VDC
inner switch check  (R-Cal):full scale 80%±1%

insulation:1,000 MΩ (50Vdc)
mounting torque:500inch-lbs
PT460E Net weight:1 lbs
PT462E net weight:1.5lbs
TPT463E net weight:2.5lbs
technical parameter:
     measuring element:K,E,J,T
     measuring range:-50℃~600℃~1300℃
     accuracy level:Class A:±(0.15+0.2%t);Class B:±(0.3+0.5%t)
     output signal:K,E,J,T
