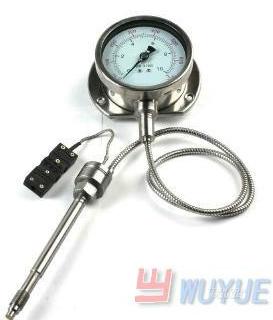

PT166 spot pointer pressure and temperature dual measuring meter
发布时间:2013-08-06
Feature and usage:
It has good Ant-heat feature , can provide spot machining pressure data, and it also absolutely replace the same kind products of Germany Pakistan Maag, United States Dynisco, and Italy GEFRAN, and Japan RKC . widely usage: rubber, chemical, fiber, etc. the extrusion machine, all can be measured pressure and temperature .
Technical parameter:
Range series: 0~5MPa~200MPa
total accuracy:1%FS1.5%FS
pressure sense diaphragm:max of 400℃
shell material :316L
FLANGE install or standard screws:M12×1.5,M14×1.5,M18×1.5,M22×1.5、1/2’-20 fulfill customers’ requirement of the interface.
Pressure temperature dual measuring meter, based on which we extra install a temperature transmitter so that makes probes can measure two parameters at one point. Temperature transmitter equipped 4 kinds resistance: J,K,E or PT100BO
