Feature and usage:

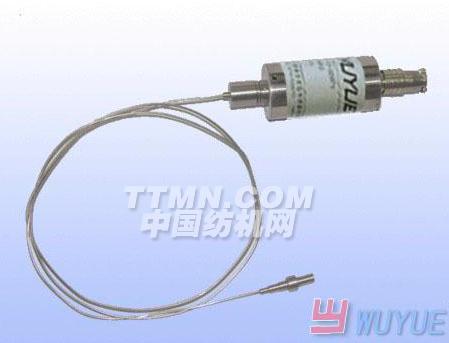

Isolated by a soft metal capillary of 1.6mm diameter, max length reachs to 5meter,max diameter of the probes is s5mm，nice stability, fine quick-resistance and high accuracy, suitable to control the pressure of trough like: diesel, boat and other small volume’s inner melt flow, gas.
Parameter:
Quantum series:0~0.1~200MP
Total accuracy:0.2%FS,0.5%FS ,1%FS',1.5%FS
Output signal:1mV/V.1.5mV/V.2.0mV/V.3.33mV/V,PT124B-141,0~20mA,4~20mA,0~5 v,1 ～5V，0～10V
Supply voltage:10VDC 12~36VDC
Internal self-calibration:80%FS±1%
Sensing diaphragm temperature resistance: up to 550 °c
Shell temperature:0~80 °c
Housing material:316L
Signal led: gold-plated five-cell or six-cell import plug-in
接口尺寸按客户要求进行设计或加工
