Feature and usage:
Brief introduce：

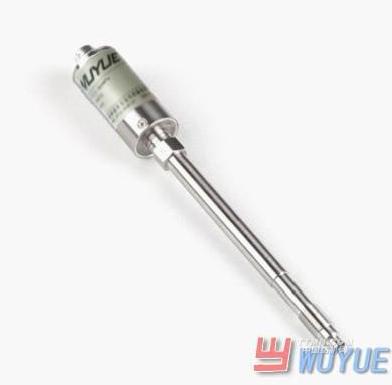

PT111-series melt pressure sensor mainly used in measuring and control melt on high temperature condition, which has a widely range：0～5MPa～100MPa any to choose；
High measuring accuracy：+0.5%FS  ;  +1.0%FS  ;
Temperature drift：≤0.30Mpa/100℃;
Output signal：2.0mV/V,   2.5mV/V , etc
This series product has high accuracy, stable, fine output signal, and dynamic feature, universality. Widely used in petroleum, fiber, plastic, rubber.

Parameter:
1：pressure range：0～5MPa～100MPa any to choose
2：accuracy：   +0.5%FS  ;  +1.0%FS  ;
3：working voltage： 10VDC（6--12VDC）;
4：output signal： PT111series：2.0mv/v, 2.5mV/V    PT1116 series：3.0mv/v, 3.33mV/V
5：check mode： 80%FSO+1%;
6：max temperature of probe can resist： 300℃
7：temperature drift： ≤0.30Mpa/100℃;
8：electric connection： PT111-series：universal 5core plus-in;PT1116 series：military 5 core plus-in .
9：over pressure：1.5*FS
10：electric connection：1/2"--20UNF 、M14*1.5 、M22*1.5、G3/4,etc screw plus-in
11：ant-corrosive and wearable：suitable for measuring pressure on high concentration coarse condition, so it can improve 3-5 times longer time.

Special requirement or design can customize, all for our customer’s benefit!
