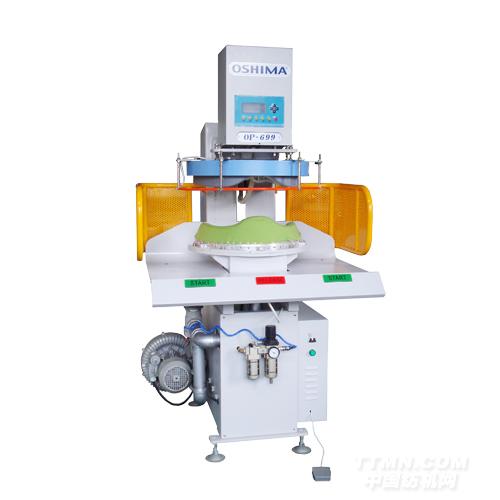

OP-5991/699恤衫縫壓燙機
发布时间:2015-05-26

OP-5991/699恤衫縫壓燙機
SHIRT ARM PRESSING MACHINE
用途
 適用於恤衫縫制壓燙。
Application
 Shirt Arm Pressing
特點
 壓力、加壓時間可依客戶需求自行設定。
 重加壓機型,穩定性佳。
 全自動氣壓式驅動裝置。
 特殊加熱器及自動恆溫裝置,可依布料選擇最佳溫度。
 操作簡便,提高效率,每小時正常產量180~230件。
 699控制為LED可儲蓄20個程式.
Feature:
 Pressing and heating time can be set accordingly.
 High-pressure type for good quality pressing.
 Auto-pneumatic pressure mechanism.
 The machine uses special heater and electronic thermostat can be adjusted according to the various kinds of fabrics.
 Easy operation and high efficiency. Its production is 180-230 pieces per hour in average.
 OP-599S: Top Mold of OP-599S is equipped with optional steam injection.
規格 Specification
|
             型號Model
             |

             OP-5991
             |

             OP-699
             |

|
             電壓Power Supply
             |

             1P/220V
             |
        |
|
             電熱功率Heater
             |

             2.28KW
             |

             3.6KW
             |

|
             最大壓力 Max Pressure
             |

             6kg/㎝²
             |
        |
|
             設定溫度Temperature
             |

             常温~180℃
             |
        |
|
             壓縮空氣耗量Air consumption
             |

             20Lit/min
             |
        |
|
             機器尺寸L×W×H Dimensions(mm)
             |

              980×1160×1380
             |

             1150×1100×1900
             |

|
             裝箱尺寸L×W×H Packing Volume(mm)
             |

             1330×1140×1660
             |

             1200×1150×2100
             |

|
             淨重/毛重N.W / G.W
             |

             360/460kgs
             |
        |
