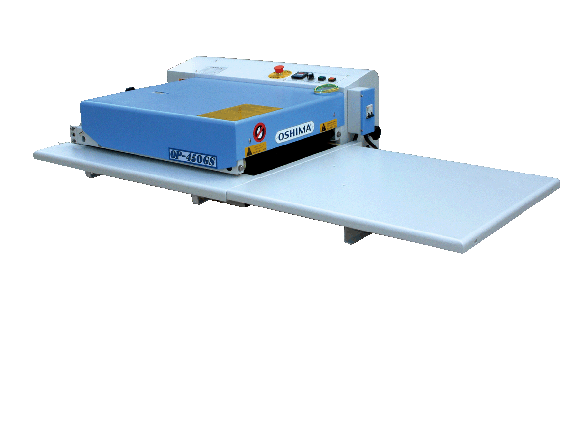

OP-450GS/450GSL/520GS/520GSL小型開邊式黏合機
MINI OPEN-SIDE FUSING PRESS MACHINE

用途
 針對平織／針織裁片之黏合工作。
Application
 For the interlining and fabrics fusing.
優點
 體積小易於搬運。
 開邊式：適合較大裁片，連袖裁片等。
 螺旋式撥片，強化裁片撥離之能力，而且裁片不易起泡變形。
 本機裝有特殊構造之輸送皮帶，可以排除皮帶的偏離，並確保其使用壽命。
 迷你黏合機具有特製壓力輔助裝置，保證最大壓力強度至1kg/㎝²。
 電子溫度調節器，及特製加熱設備，將溫度差異範圍減至最小程度。
 採用極完美且能保持熱度在一定程度的鐵氟龍傳動帶(Teflon)，而其清潔布桿可隨時保持皮帶之清潔。
 強力散熱風扇，降低電子零件處於高溫時之損害。
 OP-450GSL/OP-520GSL為下皮帶加長型。
Features:
 Compact type that can be moved easily to any places.
 Side-open style: Fit for the bigger fabrics and various sizes.
 Rotary Strip-off device for strengthening the stripping off function and avoid transforming of the finished fabrics.
 Equipped with the super linear guide belt to prevent the belt from warping, and extend the duration of the belt.
 Equipped with the special-designed pressure mechanism to ensure the maximum pressure strength up to 1kg/㎝².
 Electronic thermostat and the special-made heating equipment minimize the temperature differences.
 Use the excellent heatproof Teflon belt. This patented Teflon Belt is easy of maintenance and clean.
 Powerful ventilate fan to lower the temperature of electronic components from damaging.  .
 OP-450GSL, and OP-520GSL: L series is the longer bottom belt for more efficient work.

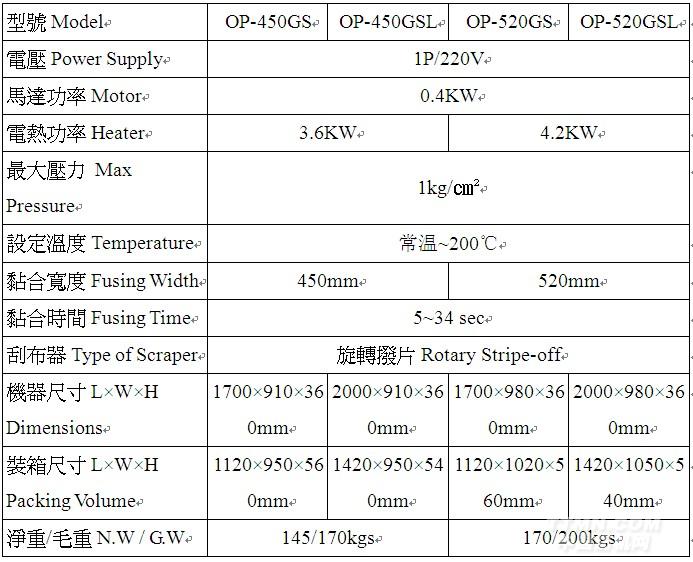

規格 Specification
