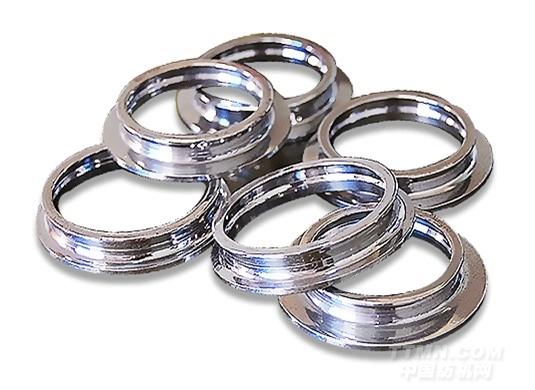

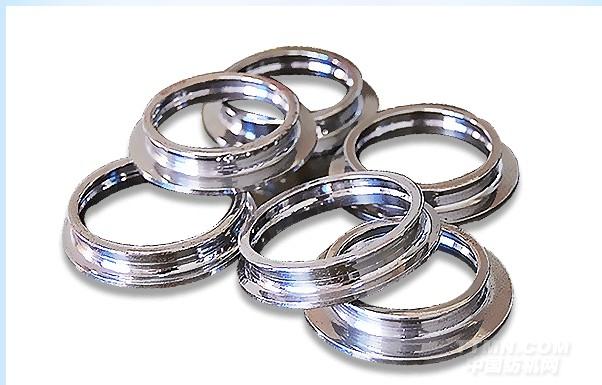

连体钢领

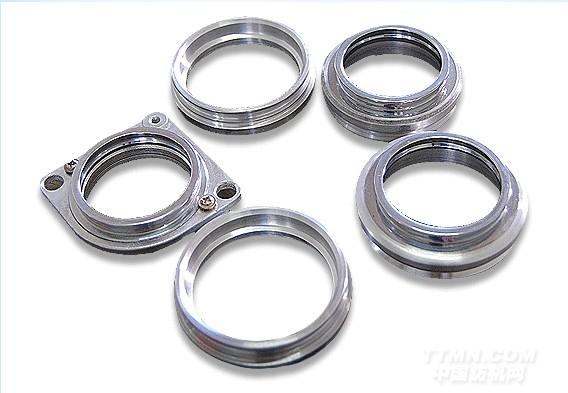

                                                                                                     钢领底座

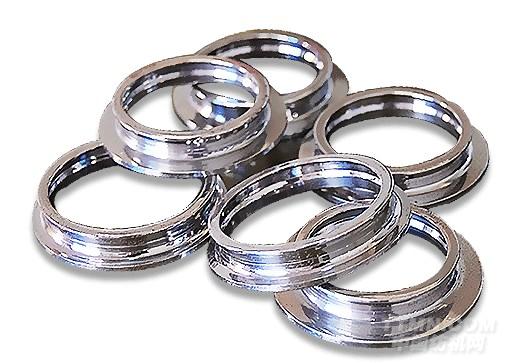

精镀硬铬钢领

·特性：

1.采用特殊电镀工艺，在钢领表面镀上一层均匀、密致的硬铬层，造成与钢丝圈表面的异相摩擦，减少粘连磨损所造成的早期衰退现象，从而大幅度提高钢领使用寿命。

2.钢领表面经过精密抛光，有较高的光洁度，上车走熟期较短。

·Features：

1. Even and compact chrome layer covered at the surface of the ring by special plating process causes out-of-phase friction against the suface of the ring traverler ，which allows long service life resulting from the reduction of the early rust which the wear and tear causes.

2. Ultra-precision polishing process on the ring leads to high surface fineness ，which allows short period to smooth running.

·全新材料；采用优质轴承钢钢材制造，比普通20钢内部组织结构紧密、均匀，热处理变形量小，材质性能稳定。

· 优良的使用性能，表面采用高科技手段，镀有自润滑耐磨层，降低了钢令与钢丝圈之间的摩擦系数，上车走熟期极短

· 表面经特殊工艺抛光后锻造度极低。纺纱性能极为稳定。断头少，毛羽少，纺纱质量稳定期较长。

·在确保纱线质量稳定的前提下，使用寿命为原来传统光面钢领寿命的2-3倍。

New material:The ring is made of high quality bearing steel.Compared with the common No.20 steel, its internal structur is compact and uniform, featuring in little deflection og heat treatment and stable material performance.
Excellent persormance;Self-lubrication wearable material coated on the surface og the ring by higg-tech process reduces the friction paameter betwen the ring and the ring traveler,which allows short period to smooth running.
Low roughness resulting from special surface polishing process alows stable spinning,low end breakage and low hairiness.
On the permise of the stable good quality, the service life of the ring is 2 to 3 times than that of the traditional one.

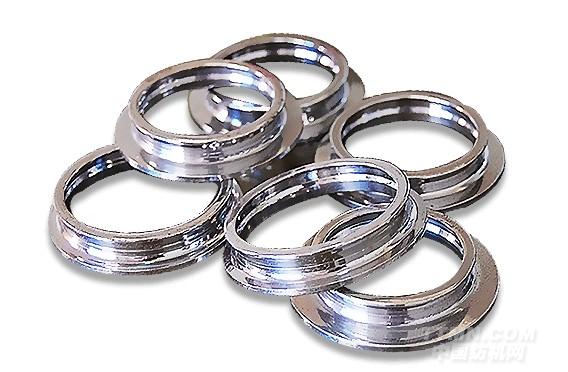

润滑耐磨钢领

自润滑耐磨钢领 Lubricate Wear-resisting Ring SUPER QUALITY SUPER LIFE

·用途：

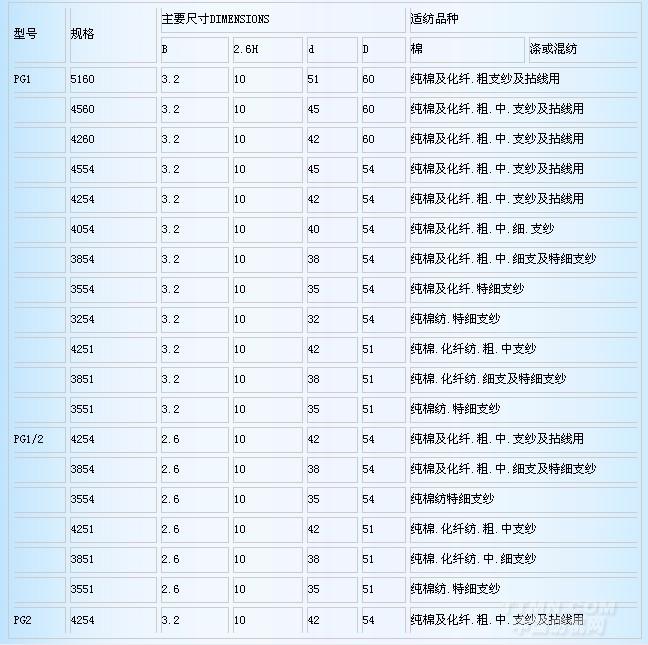

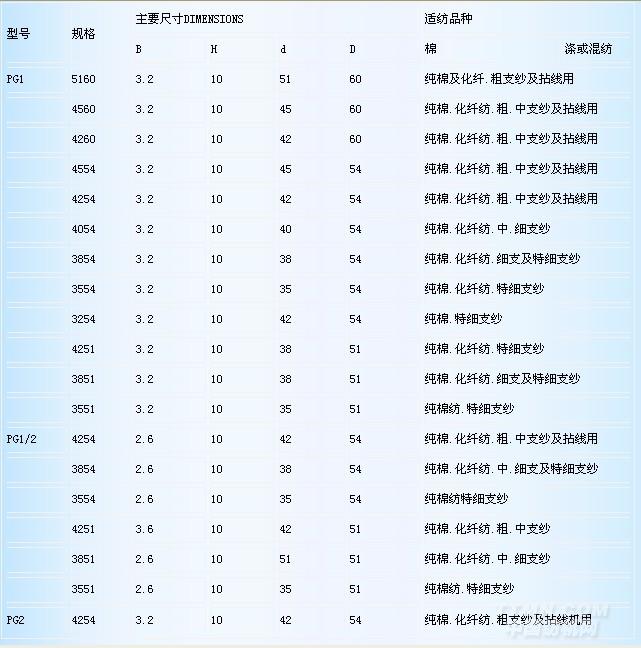

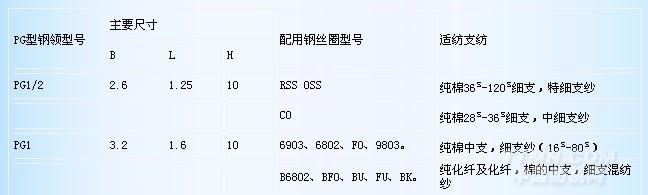

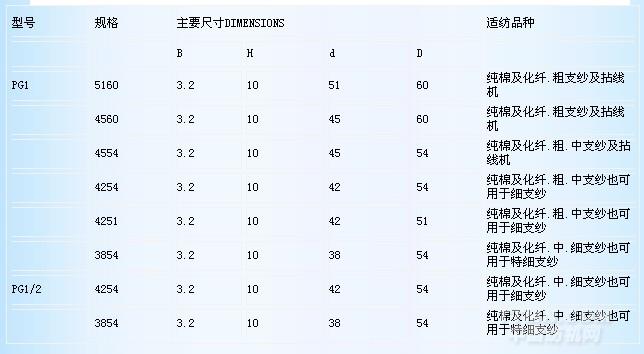

我厂生产的PG型棉纺钢领，各种规格已成系列。专供环锭细纱机和捻线机上使用。适合纺纯棉，化纤，以及各种纤维的混纺纱、线。PG型钢领上的钢丝圈最高线速度可达38米/秒。由于钢领表面采用了高科技处理技术使钢领具有自润滑耐磨性能，特别适用于棉纺行业优质、高产、低耗生产。受到中外客商的一致好评。

·Application：

Series PG alloy rings for the cotton spinning are specially provided for the ring frame and ring twisting frame.They are suitable for cotton,chemical fiber，and various blends. The surface speed of the ringtraveler is up to 38m/s. High-tech surface treatment on the ring enable it to have good wear-resistance with self-lubricating performance，which allows high quality, high efficiency ，and low energy consumption.

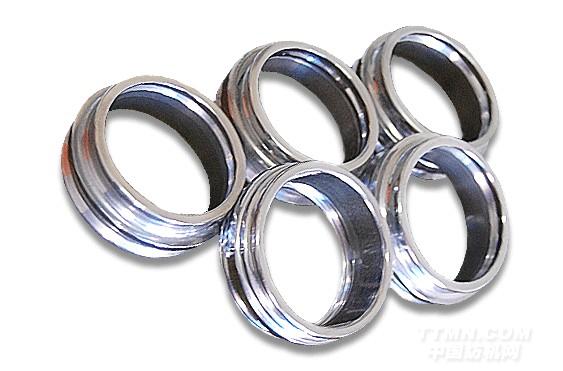

锡鸥牌“钛合金钢领”

锡鸥的牌钛合金钢领

采用高级钛合金材料研制而成。内部晶粒结构紧密、细致。热处理性能更稳定，变形量极小。

优良的使用性能：

·表面采用高科技复合镀工艺，镀上极薄一层具有自润滑作用的耐磨物质，并渗入钢领表面。上车走熟期极短。

·钢领与钢丝圈接触面属于异相摩擦，因此，不易发生粘连磨损，避免钢领跑道发生早期衰退现象，寿命与传统光面钢领相比可延长至5--7倍。

·卓越的表面处理工艺，使钢领表面几乎永不生锈。

·锡鸥牌钛合金钢领材质极为耐磨，因此，磨损量极微。在翻改纺纱品种时（指中、细支纱）不需拆下，必要时可在车上用柔软织物（或回丝）对跑道进行擦拭清理一次，并换上相应重量的（最好是同型号的）钢丝圈即可进行试纺。

·本钢领适合纺织任何纤维及各种支纱，对钢丝圈的选配无特殊要求，能使纺纱断头降低，毛羽减少。质量长期稳定在较好的水平上。

·该钢领质量差异小，为减少细纱锭差打下良好的基础。

The ring is made of high-grade Ti alloy with compact structure of the crystal grain, which allows stable heat treatment performance and little deflection.
Excellent performance:
The surface of the ring id coated with a paper-thin layer of selt-lubrication wearable material by high-etcg plating process, which allows short period to smooth running.
Out-of-phase friction between the ring and the ring trabeler allows long service life resulting from the reduction of the early rust which the wear and tear causes.Its service life is extended 5 to 7 times than that of the traditional ring.]
Advanced surface treatment process allows stainless.
XiOu Ti alloy ring with featrues of approved wear resistance makes it unnecessary to change ring when yarn counts changed.Clean the ring inside flange with soft fabric or cotton waste when it is necessary, and the replace the corresponding ring traveler, the dame type is recommended.
The ring is suitable for any fiber and all counts yarns without any special requirement for the selection of the ring traveler.Low end breakage and little hairines allow stable good quality.
High quality ring is a help to reduce the spindle discrepancy of the ring frame.
