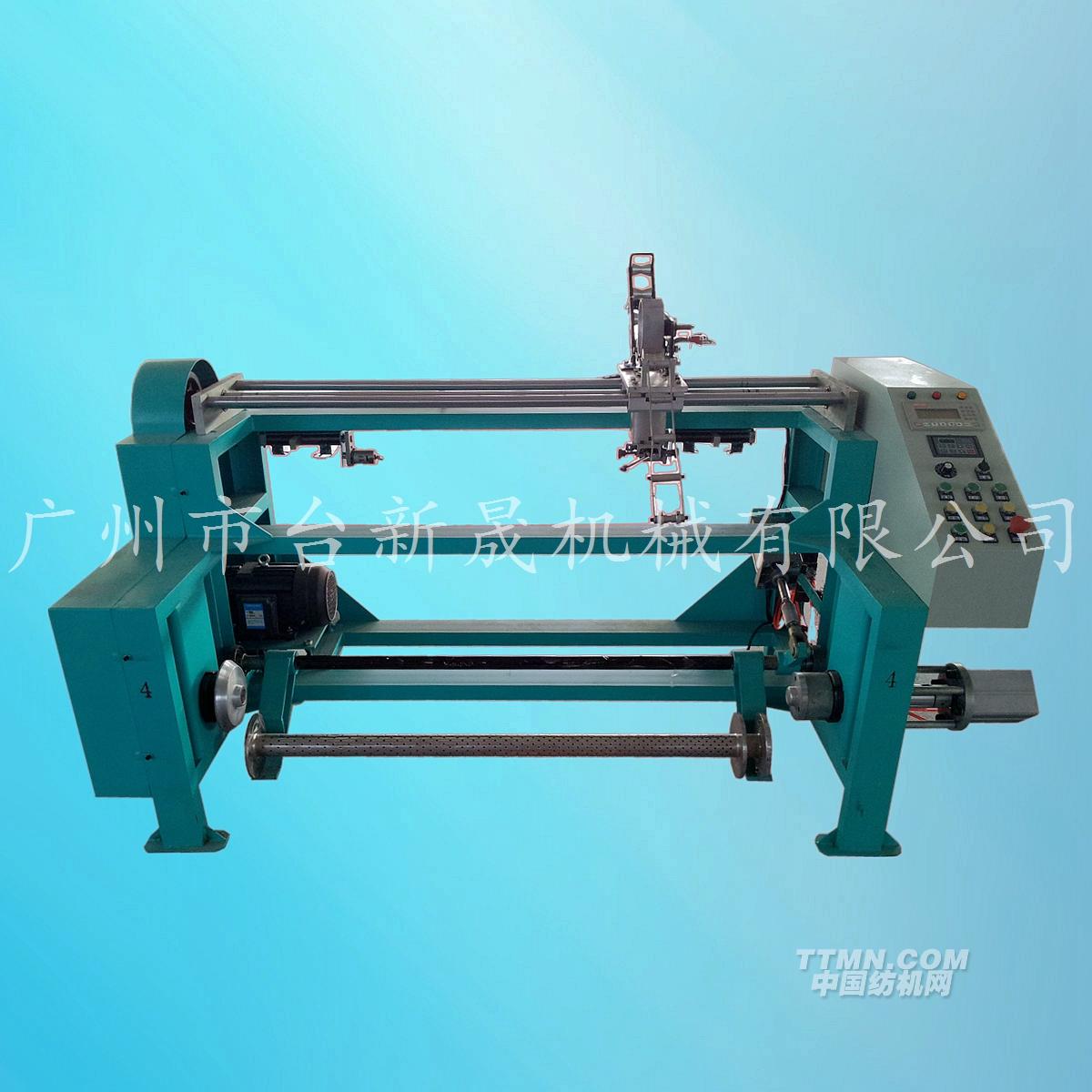

拉链卷带机(大盘头)     TS-ZB

Zipper winding machine（Big bobbin）

技术特点 Features

1. 操作方便，每人可操作2~3台，提高工作效率。

   Easy to operate, each person can operate 2~3 , improve work efficiency.

2. 采用优质刹车马达和调速变频器，卷带速度可任意调节。

   The use of brake motor and speed control frequency converter, Winding speed can be adjusted.

3. 排线器运行距离和速度可任意调整，以适配不同型号宽度的拉链，布带，使卷带效果更佳。

The traverse unit running distance and speed can be adjusted to fit the different models of the width of the zipper, cloth, so that the tape effect better.

4. 机器实现高智能化，无带，卡带，断带，接头等自动感应并立即停机。采用高精度计数器，计数定量准确。

The machine to achieve high intelligence, no zipper or knot will automatically sense and immediately stop. Using high-precision counter, count quantitative and accurate.

5. 采用气动装卸盘管的方式，更加安全，省力，高效。

The use of pneumatic handling bobbin way, more secure, effort and efficiency.

6. 大盘头卷带机，弧度大，接头少，易烫平，染色变形小，适用于大规格批量生产，30KG卷带约需15分钟。

Large bobbin winding machine has high curvature, joint less, easy ironing,little color change, suitable for large-scale mass production, winding 30KG about 15 minutes.

7. 可选配分段恒速自动卷带系统：可视化触屏和自动操控系统，使得操作更为简便；整个卷带过程分为三段不同的速度并可以单独设定，用此型卷带机卷出来的拉链，能很好的控制管底、管中、管面织带/拉链的色差和质量；在实际使用过程中，得到所有客户的一致认可和好评。

Can be equipped with constant tension winding system, and the visual touch screen control system, which makes the operation more simple;The speed of the  winding with the increase of the diameter of the coil, is gradually slowing down,achieve constant speed constant tension effect, zipper and tightness consistent, the same tension, improve dyeing effect will reduce the zipper dyeing color and flower belt, reduce zipper in the dyeing process of deformation.
