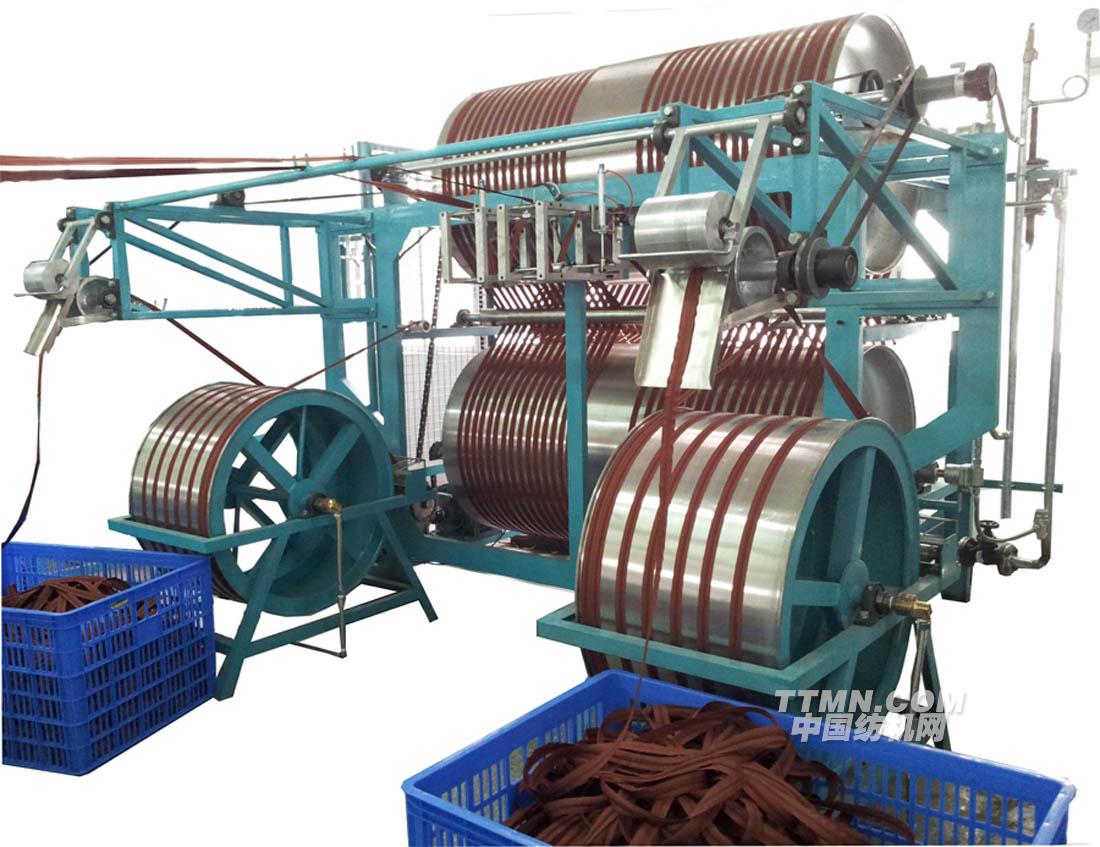

恒速恒张力送带机

The dyed zipper conveying machine (constant speed and constant tension conveying)

恒速恒张力拉链送带机是专门为生产高品质拉链产品最新研发的新设备，主要与拉链烫带机配套使用。由常规依靠烫平机自行拉拽进料的被动方式升级为按张力大小自动调节进料的主动方式，使用效果显著，对产品品质的提升起到至关重要的作用。该机型与技术已申请并通过国家专利认证，并下发了国家专利证书

This machine is specially designed for high quality zipper production,which in combination with ironing machine.It upgrading from ordinary passive feeding mode to active constant tension feeding mode,which plays a very important in the promotion of product quality.The technology have been applied and passed the national patent certification, and issued a national patent certificate.

技术特点 Features

1. 恒张力控制器张力值可任意调整，能使不同规格拉链配以最佳张力，达到最佳烫带效果。电器部分采用优质配件制造，精密先进，品质稳定。装卸方式采用气缸自动提升部件，方便快捷省力。

The tension value of the constant tension controller can be adjusted to fie the different size of the zipper.Electrical prat of the use of high quality imported accessories manufacturing,superior performance,quality stability.The use of automatic loading and unloading system,convenient and quick.

2. 可以在不改变现有烫平机现状的情况下，增加可调张力系统和送带系统，并将控制系统集成到送带机操作面板，使两种设备完美配合，减小设备操作难度，提高工作效率。

It is possible to increase the adjustable tension system and the belt feeding system without changing the existing state of the ironing machine,the control system is integrated in the zipper conveying machine operation panel,reduce equipment operation difficulty,improve work efficiency.

3. 配备无料自动停机系统，每人可操作2-3台，效率极高。

The dyed zipper conveying machine installed when the zipper shortage,can automatically stop running,each person can operate 2-3machines,and very efficient.

4. 常规情况下，大拉链管可以卷50Kg拉链，染色之后，普通拉链烫平机整烫后的拉链或布带将被拉长（经过测试结果为：同一个拉链管的拉链取20段1000mm长的未整烫拉链，整烫之后被拉长10-45mm，20段样品长度在1010-1045之间，拉长比例是1-4.5%）。使用拉链送带机整烫后的拉链，被拉长变形的比例会大幅度缩小（用之前同样的测试方法，结果为：整烫之后被拉长10-15mm，拉长比例降低为1-1.5%）。

1.Under normal circumstances, the big bobbin can be rolled 50Kg zipper,after dyeing,zipper ironing machine processing zipper or zipper tape will be stretched(after test results:with a bobbin of zipper take 20segment 1000mm long zipper not ironing,ironing pulled after long 10-45mm,20 segment length of the sample between 1010-1045mm,stretch ratio is 1tp 4.5%），Using this device ironing over zippers, are elongated deformation ratio will significantly reduce（Prior to using the same test methods, the result is: after being stretched ironing 10-15mm, are elongated to reduce the proportion of 1-1.5%）.
