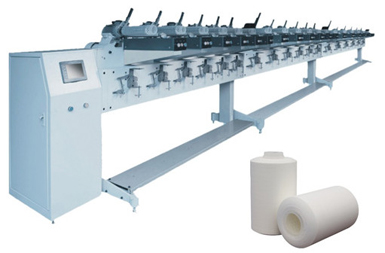

SHGD0102型高速精密络筒机
SHGD0102型高速精密络筒机是借鉴国内外先进络筒技术,结合国内实际生产情况开发的全新机型。该机充分体现了机电一体化的内涵,改变了传统的锭箱、咸形的机械传动方式,做到使用可靠,操作简便,维修方便。该机的特点是卷装容量大,速度高,成形好,配有电子计长装置,张力补偿装置。
该机采用单锭独立变频调速,导丝往复机构采用伺服电机结构完成。可在参数范围内通过人机对话形式自由控制卷绕密度及无级调遭,可做松式染色筒子和经纱、纬纱或针织高速退介筒子。可单锭或整机设置所需的工艺要求及卷装形式,也可显示单锭即时状态,如卷装直径、长度、线速度、累计时间和故障状态等。
SHGD01O2 REWINDING MACHINE is the new product which combinethe global advanced rewinding technology and satisfy domestic producing requirement. It is truly realize electromechanical integ ration, it is really reliable, easy to operate and convenient for maintenance. The feature include big installed capacity, high speed and better shaped ability. It is also be furnished with electronic length counter and tension compensating mechanism.
主要技术参数
1.锭距:360mm
2.锭数:6-60锭
3.卷绕线速度:150-1000米/分
4.住复动程:60-250mm
5.最大卷绕直径:250mm
6.卷筒形式:直筒;锥筒
7.单锭装机容量:230w
8.单锭实际能耗:130w
9.张力:0-40克(配有张力补偿装置)
10.外形尺寸:4700x850x1620mm(长x宽x高)基本机型12锭
Technical Parameter
1.Spindle space: 360mm
2.Number of spindles: 6-60spindles
3.Thread speed: 150-1000m/min
4.Traverse: 60-250mm
5,Max. winding diameter: 250mm
6.Type of tubes: cylindrical or conical
7.Installed capacity: 230w/spindle
8.Energy consumption: 130w/spindle
9.Tenslon: O-40g (tension compensating device supplied)
lO.Dimensions: (Lx Wx H) 4700x850x 1620mm (12 spindles)
