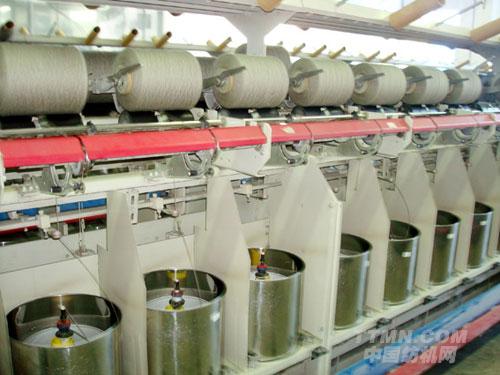

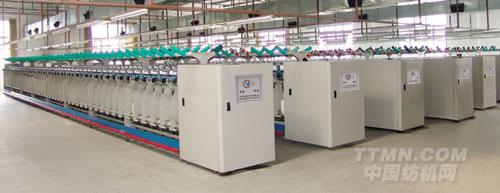

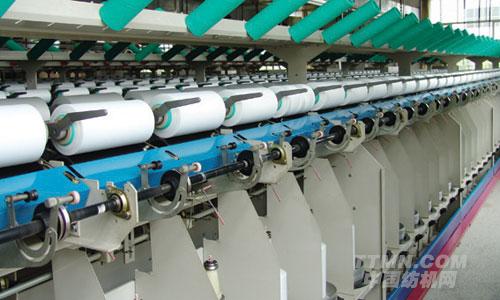

CY250A大卷装倍捻机
化纤加捻设备,实行一转两捻,效率比传统捻丝机成倍提高,卷装容量增大,几万米无接头,减少了纤维由于分筒工序所造成的磨损,加捻质量大幅度提高。
The fiber two-for one twister achieves one rotation to two twists. Its efficiency is much higher than traditional throwing machine in times, and the capacity of package increased. No piecing in tens of thousands of meters helps to decrease the abrasion of fiber which caused by the process of apart bobbin, and the twisting quality is highly improved.
适用范围
DTY、POY、HOY、FDY、粘胶长丝等45~6000D各种纤维的单股或多股加捻。
Applied Range
45~6000D fibers, such as DTY, POY, HOY, FDY, viscose filament yarns.
特点
Features
技术参数 Technical Parameter
操作形式 Form of operation |
双面单层,引丝线穿线 Double sides and single layer, |
锭数 Number of spindles |
12锭倍数,标准型96锭 12n, 96 spindles are standard |
锭距 Spindle gauge |
363mm |
锭速范围 Spindle speed range |
2500-10000r/min |
捻度范围 Twist range |
65-3000T/M |
捻向 Twist direction |
S或Z S or Z |
锭子张力器 Spindle tensioner |
钢球式或胶囊式 Ball or capsule type |
供纱筒管尺寸 Size of supply bobbin |
¢69×¢77×290 |
卷取筒管尺寸 Size of winding bobbin |
¢69×¢77×290 |
卷绕动程 Traverse (导纱器的)往复动程 |
152mm-280mm |
额定功率 Rated power |
18.5kw |
启动方式 Start-up mode |
变频慢速启动 Frequency converter start-up slowly |
卷绕角 Take-up angle |
0-30° |
导丝器往复次数 Filar guide to-and –fro times |
最大100次/分 Maximum 100t/min |
卷取速度 Take-up speed |
最大120米/分 Maximum 120m/min |
卷装量 Take-up package |
最大5千克 Maximum 5kg |
锭子传动 Spindle drive |
龙带切线传动 Belt circulation drive |
