基本规格SPECIFICATIONS
●烫光辊工作长度: 2000mm 2200mm 2500mm
●烫光辊直径: φ288mm φ320mm φ370mm φ415mm
●烫光辊加热方式:电加热
●烫光辊表面工作温度范围:100-250℃
●烫光辊表面工作温度控制精度:±5℃
●织物传送速度: 5-16m/min,可变频调速。
●烫光辊的转速: 前: 1200r/min 后: 1250r/min (φ268mm)
前: 800r/min 后: 850r/min (φ320mm)
前: 750r/min 后: 800r/min (φ370mm)
前: 600r/min 后: 650r/min (φ415mm)
●加热总功率: 88kw(φ268mm) 116kw(φ320 φ370 φ415mm)
●设备装机总功率:116kw(φ268mm)
144kw(φ320 φ370 φ415mm)
●设备总重: 5.5T
●设备外形尺寸:(长x宽x高)
4760x4430x3270mm(2000mm) 4760x4630x3270mm(2200mm)
4760x4930x3270mm(2500mm) 4760x5230x3270mm(2800mm)
●电源要求: 电压:380V 频率:50Hz
●Working wilth: 2000mm 2200mm 2500mm 2800mm
●Diameter of polishing rollor: φ268mm φ320mm φ370mm φ415mm
●Heating type: alectronic heating
●Surface temperature range of polishing roller: 5-250℃
●Difference in temperature: ±5℃
●Delivery speed: 5-16m/min, with inverters to adjust speed。
●Rotary speed of roller: front: 1200r/min rear: 1250m/min(φ268mm)
front: 800r/min rear: 850m/min(φ320mm)
front: 750r/min rear: 800m/min(φ370mm)
front: 600r/min rear: 650m/min(φ415mm)
●Heating power: 88kw(φ268mm) 116kw(φ320 φ370 φ415mm)
●Total power: 116kw(φ268mm) 144kw(φ320 φ370 φ415mm)
●Weight: 5.5T
●Overall dimensions: ( length'width'height )
4760'4430'3270mm(2000mm) 4760'4630'3270mm(2200mm)
4760'4930'3270mm(2500mm) 4760'5230'3270mm(2800mm)
●Voltage: 380V Frequency: 50Hz

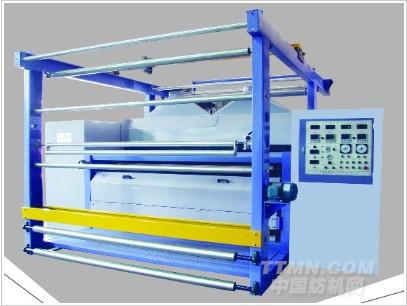

RN420超强型双辊烫光机特点
RN420 DOUBLE ROLLERS STRONG POLISHING MACHIEN
●采用超大“镜面”φ415mm六槽烫光辊,穿透力更强。烫光效率更高,生产效率提高30%.更适用于涤纶高克重面料。
●烫光辊采用“镜面”处理:
φ268mm 烫辊,转速提升。烫光效率提高,可节电30%左右.建议中低克重面料优先选用,节能更明显。
φ415mm 烫辊为六槽烫辊。烫光效率提高,更适合于涤纶高克重面料。
●扩幅装置,使进布更平整、无打皱、无挤痕,烫光无烫痕,提高成品率。
●数字化控制托带距离,使托带压力更直观,容易操作。
●采用日本精密数显温控仪,控制温度更精确、温差控制在±2度以内。
●可增加高效展布装置,自动纠偏装置,断布自停装置,联机吊锤自停装且,在连机运行时,自动化程度高,减少用工。
● Uses super “mirror” φ415mm polishing roller with six grooves, with strong penetration andhigher polishing efficiency, to improve 30% efficiency,and be more suitable for high-weight polyester fabric.
●The damping roller device of feeding, makes the tension adjusting more convenient.and the polish tension more stable.
●Expander device helps feed more smoothly, no crease, no press marks and improve the leld.
●Take control of the distance of belt digitally, leads the belt pressure more intultive, and easu to operate.
●Adopts Japanese precise digital temperature controller to control more accuracy, within ±2 degrees.
●Increase the automatic on-line feature, with high active expanding device, automatic correcting device,automatic stop device,stop-line hanging from the hammer device,it will be more automatic and will reduce the labor when on-line.
