Cy250C大卷装倍捻机

发布时间:2011-03-10

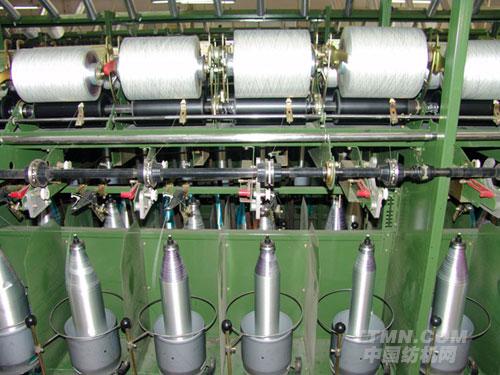

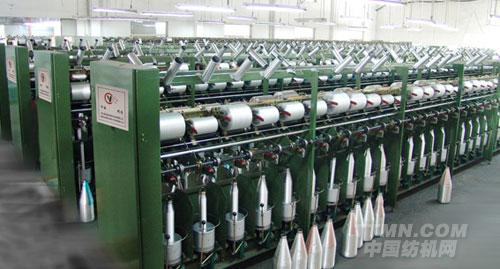

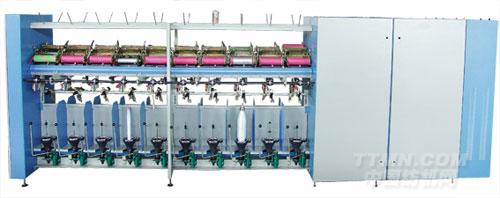

Cy250C大卷装倍捻机

  • CY250C适合高捻度化纤加捻
    CY250C is adapt to yarns in the high and medium twist rang

适用范围
DTY、POY、HOY、FDY、粘胶长丝等45~6000D各种纤维的单股或多股加捻,适合锦纶、涤纶帘子线单股加捻。
Applied Range
45~6000D fibers, such as DTY, POY, HOY, FDY, viscose filament yarns, suitable for chinlon, polyester cord thread etc.

特点

  • 操作方便、传动合理、结构紧凑、外形美观;
  • 单锭收边,可以随意上纱和下纱;
  • 可以省去其他倍捻机需分成小筒纱加工的麻烦,减少工序,提高效率及质量;
  • 手动脱离式锭子制动系统,操作更简单,同时延长龙带和锭子寿命;
  • 车头的合理设计方便捻度的变换以及龙带松紧的调整;
  • 用CY250B做松紧式卷绕时,设计了巧妙的超喂系统,保证了纱线的柔软和密度。

Features

  • Convenient operation, reasonable transmission, compact construction and fine appearance;
  • Single spindle retracts sides makes it get up and down the yarn at will;
  • It can possibly omit troubles that other two-for-one twisters need to divide into small yarn cones to produce, the processes can be decreased, the efficiency and quality can be improved;
  • Manual renegade spindle-braking system is more easy to operate, and the longevity of apron belt and spindle will prolong at the same time;
  • The reasonable design in the headstock is convenient for changing twist and adjusting the degree of tightness of belt;
  • The skillful design in pre-take-up roller ensures the pliancy and density of yarns when the CY250B is winding by the degree of tightness.


技术参数  Technical Parameter


CY250C

操作形式
Form of operation

双层单面,引丝线穿线
Double sides and single layer, thread manually

锭数 Number of spindles

10锭倍数,标准型120锭 10n, 120 spindles are standard

锭距 Spindle gauge

300mm

锭速范围 Spindle speed range

2500-13000r/m

捻度范围 Twist range

65-3000t/m

捻向 Twist direction

S或Z S or Z

锭子张力器 Spindle tensioner

钢球式 Ball type

卷绕动程 Traverse

190mm-210mm

额定功率 Rated power

11kw

启动方式 Start-up mode

变频慢速启动 Frequency converter start-up slowly

卷绕角 Take-up angle

0-30°

卷取速度 Take-up speed

最大120米/分 Maximum 120t/min

卷装量 Take-up package

最大3千克 Maximum 3kg

锭子传动 Spindle drive

龙带切线传动 Apron belt circulation drive
