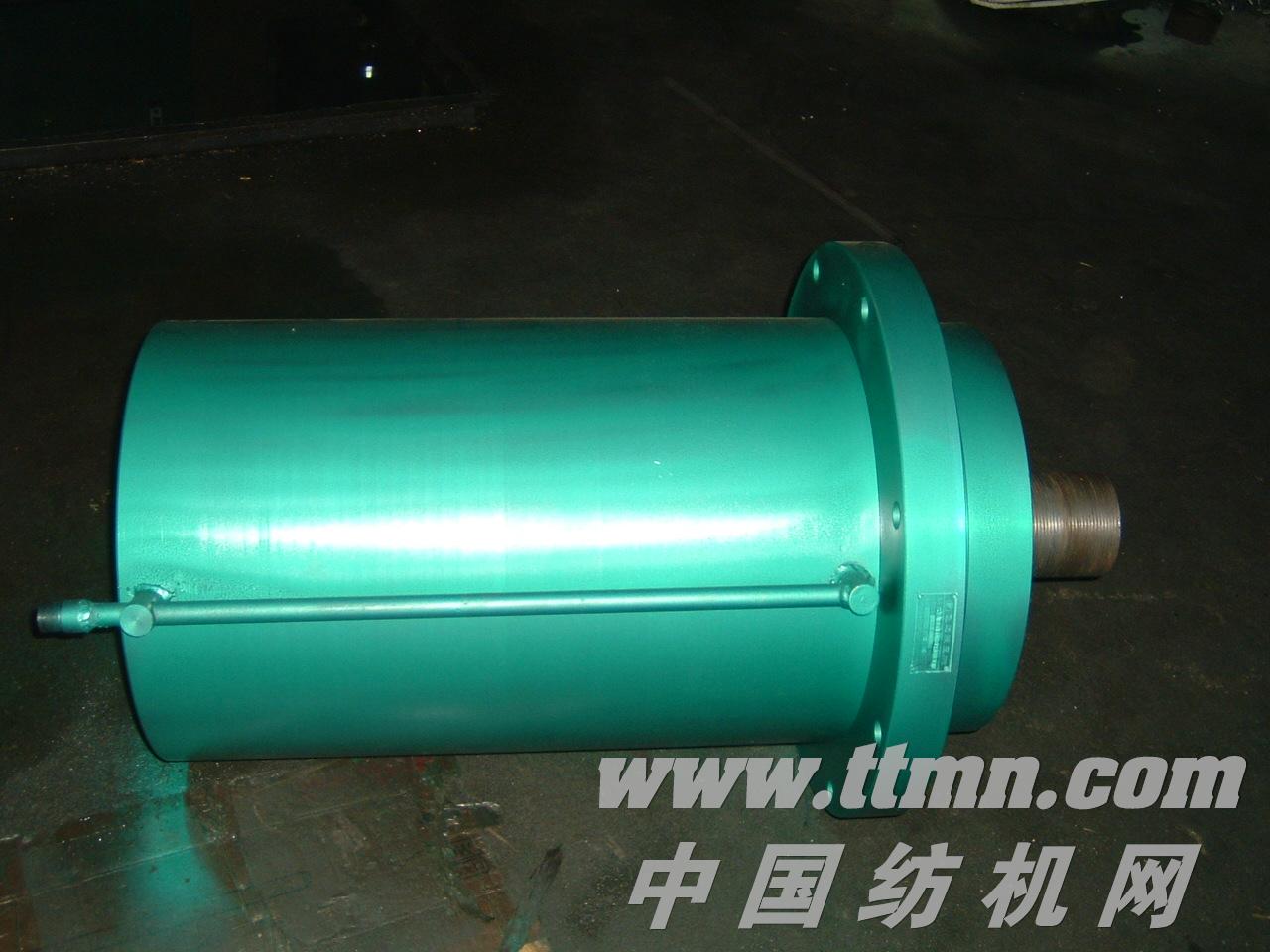

圆型铝合金气缸

气缸内径
Bore sizes of cylinder(mm) 20 30 40
单动标准行程
Stroke(Single acting)(mm) 15 , 25 , 50
双动标准行程
Stroke(Double acting(mm) 25 , 50 , 75 , 100 , 125 , 150,175 , 200 , 250 , 300
双动行程范围
The range of stroke(mm) 300 500
工作媒体
Power fluid　 已滤清之压缩空气(润滑或未润滑) Filtered air with or without lubrication
缸管材质
Material of Cylinder barrel 铝合金缸管 Anodised aluminium alloy
使用压力范围
The range of pressure(MPa) 双动Double Acting:1.03 单动Single Acting:0.23~1.03
使用温度范围
The range of temperature(℃) -10 ￣ +60
