江阴隆吉诚机械制造有限公司

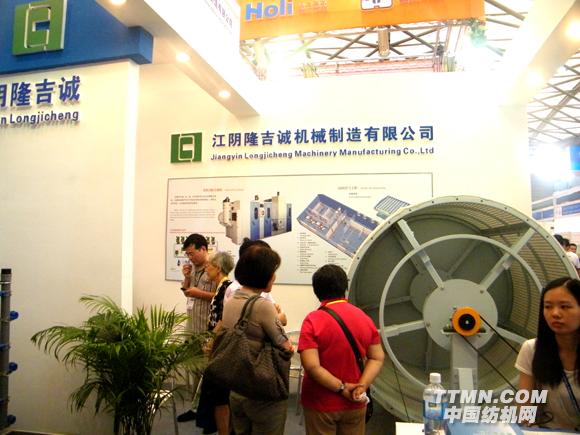

2010年中国国际纺织机械展览会暨ITMA亚洲展览会于6月26日落下帷幕，持续5天的展会不仅为行业带来诸多商业契机，也带来了更多的挑战。借行业发展之东风，江阴隆吉诚机械制造有限公司也以一个全新的姿态亮相在此次展会上。
展商简介：

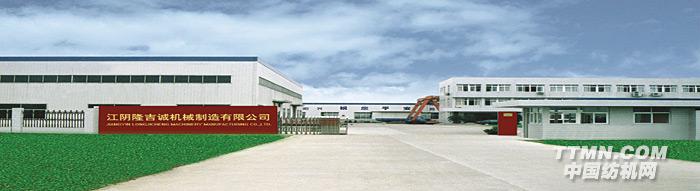

江阴隆吉诚机械制造有限公司自创建以来，本着“以管理出效益、以质量求生存、以服务求发展”的精神，在纺织滤除、空调等领域中，不断进取，求实提高，为广大用户提供优质产品及周到服务，赢得了市场的广泛接受和好评。
公司拥有科学化管理体制，先进的管理技术，高素质的员工；汇集了一批业务能力出众的专业系统设计和研制开发人员，CAD软件绘图、设计系统；不断创新、精益求精，使我们的产品技术先进、性能优良、跟随时代同发展。
公司生产的LFUO17型多筒式滤尘机组具有结构简单、新颖、机组能耗低、除尘效果好、故障率低等特点。在空调设计上，正朝着高效率、节能型、机组化及机电一体化方向发展。
我们的宗旨是“用一份执着、用一份实在、用一份认真、创一流的服务、质量。用脚踏实地的从业精神和做事态度，致力于纺织滤尘、空调行业的开拓进取！”
江阴隆吉诚机械制造有限公司在江阴--苏南名城，热忱欢迎您的到来--五湖四海的朋友们！

Based on the sprit of“benefit through management．exi stence lhrough quality and development through service”，Jiangyin Longjicheng Machinery Manufacturing Co．，Ltd has been making progress and improvement continuously in the field of textile du

st cleaning and air conditioning since its establishment，and has offered high quality products and perfect srevice for the USers，winning wide
acceptance and reputation from the market．
With scientific management system，advanced management technology and high quality staff members，our company has a team of outstanding and professional personnel engaged in system design．research and development，with CAD software drawing and design system，we make continuous innovation and improvement and ensure advanced technology and excellent performance of our products．
LFUO 1 7 model multi—drum dust filtering set produced by our company has such advantages as simple and novel structure，low energy consumption，good dust filtering effect and low failure rate etc．In terms of air—conditoning desi

gn，we are developing toward high efficiency，energy-saving，and mechanical—electrical integration．
It’s our purpose to create classic service and quality with persistence，diligence and reality and develop textile dust filtering and air conditioning with substantial undrtaking attitude．
Friends from all over the world are welcome to visit our company that is situated in Jiangyin，the famou S city in the south of Fiangsu Provjnce

展商展品：

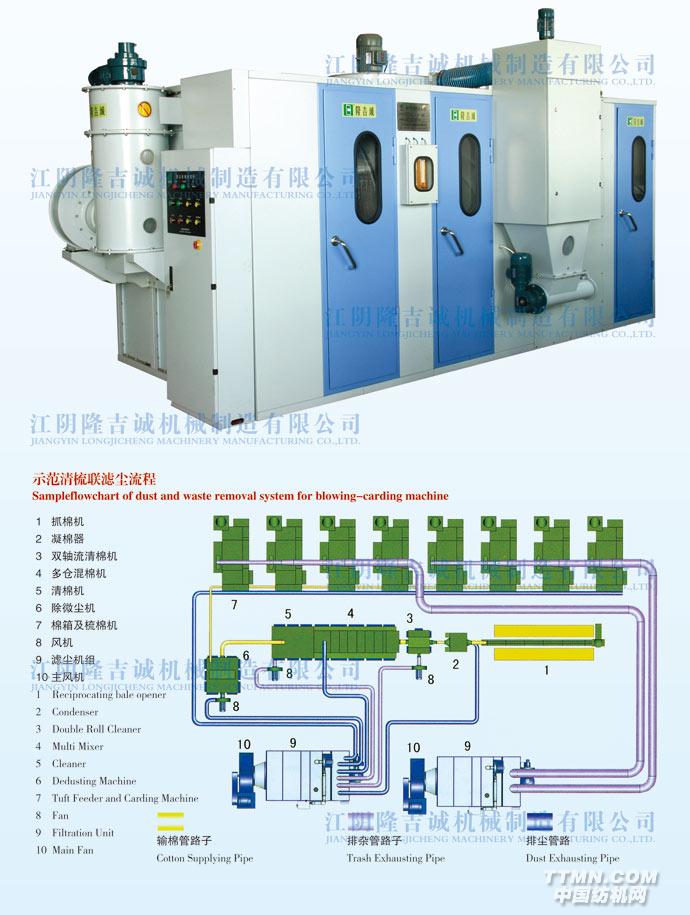

LFU017型多筒式除尘机组LFU017 Model Multi-drum Duster
产品用途
主要用干棉、毛、麻、化纤等纺织行业的空调除尘系统，过滤和收集空气中干性的纤维性杂质和粉尘，使含尘空气净化，以达到回用或排放要求。
Application:
Mainly used for air conditioning and dust cleaning system in textile industry including cotto

n.wool,linen/ramie and chemical fiber etc.,it can
filter and collet dry fibrous impurity and dust in the air,which makes dust air purified and reach the requirement of recovery and discharge.

http://www.longjicheng.com/newEbiz1/51alongjichengres/filerepository/images/c373e922653019758f6bbdaf9af2e9ff

工作原理

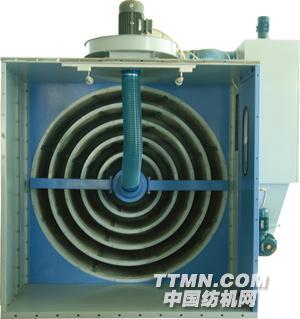

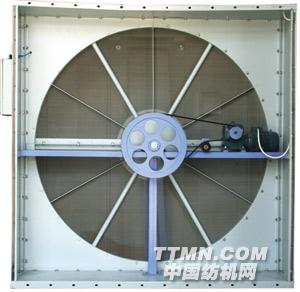

多筒式除尘机组是由第一级圆盘预过滤器和第二级多筒式滤尘器构成的机电一体化的除尘机组。第一级圆盘预过
滤器主要过滤、分离、收集被处理空气中的纤维和杂质第二级多筒式滤尘器主要过滤、分离、收集第一级过滤后空气
中的微细纤尘和粉尘。
Working principle：
It is a mech-electrical unit consisted of the first-stage disc prefiher and the second stage multiple round cage dust-filter. The first stage filter
is used to extract, separate,collect the fibrous dust in the processing air; The second stage filter is used to filter out the Fine dust from the air exhausted

from the first stage filter.
结构特点

http://www.longjicheng.com/newEbiz1/51alongjichengres/filerepository/images/c373e920a7a982418ffff5b05856f9b3

除尘机组性能可靠，适应性强，过滤面积大，
机组能耗低，系统阻力小；除尘效果好，速度快，
安全阻燃；传动机构简单，故障率低；机组占地面
积小，维护检修方便快捷。
Structure features:
Dust cleaning set has reliable performance,strong
adaptability,large filtering area,low energy consumption,small
system resistance,good dust cleaning effect,fast speed,good safety　　　
and fire resistance,moreover,it has simple drive mechanism,low
failure rate,small floor space,as well as convenient and quick
maintenance.

http://www.longjicheng.com/newEbiz1/51alongjichengres/filerepository/images/c373e920a7ac86d98ffff5b05856f9b3

http://www.longjicheng.com/newEbiz1/51alongjichengres/filerepository/images/c373e920a7a9825a8ffff5b05856f9b3

性能参数 Performance parameters

FU017-7

型号规格 Mode l and specification	处理风量x104m3/h Treatment blast						滤尘阻力Pa Resistance of dust filtering	除尘效率% Dust cleaing efficiency%
	除尘系统 Dust cleaning system					回风过滤 Air returning filter
	废棉 Waste cotton	粗号棉 Bonnet cotton	中号棉 Middle cotton	细号棉 Fine cotton	化纤棉 Chemical fiber cotton	回风过滤 Air returning filter
LFU017-5	0.6-1.2	1.0-1.8	1.6-2.2	2.0-2.8	2.6-3.8	3.5-4.0	≤250	≥99
LFU017-6	1.2-2.0	1.8-2.9	2.0-3.2	2.6-3.7	3.8-5.1	4.0-5.4
LFU017-6A	2.0-2.8	2.5-3.7	2.9-4.0	3.3-4.7	4.8-6.4	5.0-6.7
2.8-3.6	3.0-4.7	3.6-5.2	4.0-6.0	6.0-8.2	5.9-8.6
LFU017-7A	2.8-3.6	3.6-5.0	4.0-5.8	4.8-6.9	8.0-9.0	8.0-9.5

注：表中参数为用于棉纺各生产工序、各纺纱品种除尘系统时的处理风量。用于其他情况仅供参考。
Note：Parameters in table are used for treatment blast in dust cleaning system of each production procedure and variety of cotton spinning. For
others,it is only for reference.

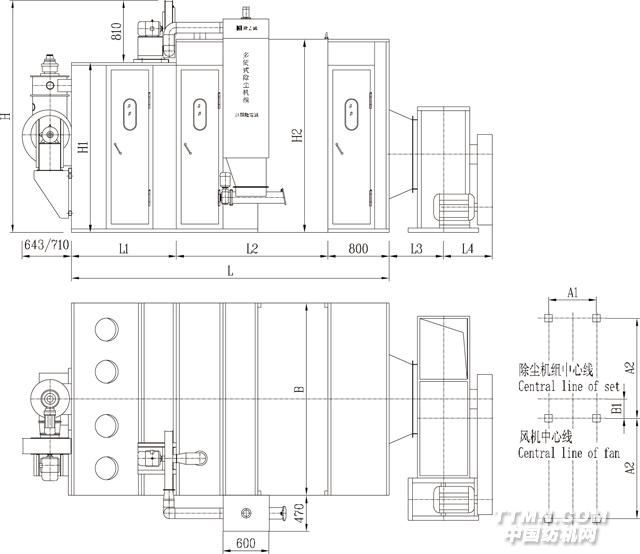

规格尺寸 Specification

型号规格 Model and specification			LFUO17-5	LFUO17-6	LFUO17-6A	LFUO17-7	LFUO17-7A
第一级 Grade \|	圆盘滤网 Filter screen of dise	盘径 Diameter of disc	Ф1700	Ф2000	Ф2000	Ф2500	Ф2500
		过滤面积 Filte ring area	2.07	2.94	2.94	4.71	4.71
		滤网(目/英寸) Filter screen(mesh/inch)	60-80-100-120（不锈钢丝网） 60-80-100-120（Stainless steel screen）
	箱体外形尺寸 Overall dimension of box	长度L1（mm） Length	1368
		宽度B（mm） Width	1900	2204	2508	2812	2812
		高度H1（mm） < Heigth	1912	2216	2216	2824	2824
	装机容量（km） Total inaalled capacity		3.92			4.92
第二级 Grade \|\|	滤筒 Filter drum	最大直径Ф（mm） Max .diameter	1712	2016	2320	2624	2624
		过滤面积（m） Filter area	16	21.5	27	34	39.1
		滤料 Filter materials	JM2或JM5（阻燃长毛绒） JM2 or JM5(Fire resistance plush)
	箱体外形尺寸 Overall dimension of box	长度L2（mm） Length	1976				2096
		宽度B（mm） Width	1900	2204	2508	2812	2812
		高度H2（mm） Heigth	1912	2216	2520	2824	2824
	装机容量（km） Total inaalled capacity		4.21			5.21
机组 Set	最大外形尺寸 Max.overall dimension	长度L（mm） Length	4144				4264
		宽度B（mm） Width	2292	2596	2900	3204	3204
		高度H（mm） Heigth	2722	3026	3026	3634	3634
	总装机容量（km） Total inaalled capacity		8.13			10.13

风机地脚尺寸 Foundation size of fan

风机规格 Specification of fan	A1	A2	L3	L4	B1
SFF232-12 NO.7.1E	510	1060	650	560	230
SFF232-12 NO.8E	570	1170	680	600	232
SFF232-12 NO.9E	625	1305	706	640	251
SFF232-12 NO.10E	690	1415	735	700	247
SFF232-12 NO.11.2E	765	1540	775	730	238
SFF232-12 NO.12.5E	850	1800	814	760	346
