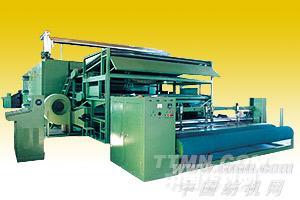

YYBG喷胶棉、无胶棉生产线

公司名称：江苏迎阳无纺机械有限公司

产品说明：

用途特点：该机组主要生产高弹喷胶棉、无胶棉。该产品广泛应用于服装、床上用品、家具等。
　　喷胶棉干燥机采用前后正反喷胶，六层风道上吹下吸，热风穿透对流，热效率高。

主要规格：机 幅：3100mm，3800mm

产品净宽：2500mm，3200mm

箱体长度：8000mm，10000mm，12000mm

产品规格：60-300g/m2

产 量：100-260kg/h

热 源：蒸气、导热油、直燃式

YYBG Spraying collodion and Non-collodion Production Line

Purpose and characteristics: This machine unit mainly produces high-elasticity spraying collodion
　　and non-collodion, which are widely used for garments, bedding and furnitures. The drying machine
　　for spraying collodion, which are widely used for garments, bedding and furnitures. The drying
　　machine for spraying collodion adopts front and back spraying, top-blowing and bottom-suction with
　　6-layer air duct, hot air penetration and convection with high heat efficiency.

Main specifications:

Machine width: 3100mm, 3800mm

Product net width: 2500mm, 3200mm

Chamber length: 8000mm, 10000mm, 12000mm

Product specification: 60-300g/m2

Output volume: 100-260kg/h

Heating source: vapor, heat-conducting oil, and direct ignition
