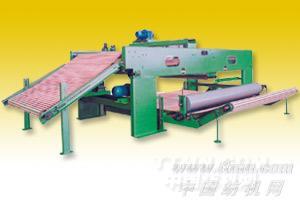

YYPW铺网机

公司名称：江苏迎阳无纺机械有限公司

产品说明：

用途特点：将梳理机的纤维网均匀折叠；铺设至所需的宽度及厚度，经加压后送至下道工序。
　　各铺网帘均单独传动，便于调节；往复换向采用变频控制；轨道防漏油。

主要规格：

输入帘宽：1700-2700mm

输出帘宽：2200-7200mm

铺网速度：≤45m/min

总 功 率：6-15kw

YYPW Mesh-Paving Machine

Purpose and characteristics:　To fold and pave the mesh after coming evenly into certain width
　　and thickness, then transfer it to next procedure after pressurization. All paving aprons are
　　driven separately for easy adjustment; the reciprocal commutation is controlled by frequency
　　conversion; the rail is resistant to oil leaking.

Main specifications:

Input apron width: 1700-2700mm

Output apron width: 2200-7200mm

Mesh paving speed: ≤45m/min

Total power:6-15kw
