预浸机
连云港鹰游纺机有限责任公司
公司名称：连云港鹰游纺机有限责任公司
.jpg)
.jpg)
产品名称： 预浸机
产品售价： 面议（电话：0518-85913340）
产品规格：
产品备注：
产品类别： 纤维设备 → 预浸机
我公司生产的预浸设备为二步法生产热熔预浸复合材料设备，主要包括热熔涂胶机和热熔预浸机。生产时，首先在涂胶机上浆树脂涂于离型纸生产出胶膜，然后把胶膜送到预浸机上，使胶膜与增强材料（碳纤维、玻璃纤维、芳纶纤维）复合，再经压辊加热熔化、整平，将胶均匀地浸渍到增强材料里而生产出热熔预浸复合材料品质高，生产效率高，因此运用广泛。
This kind of equipment is suitable for produce hot-melt prepreg composite materials by two-step. It includes hot-melt sizing machine and prepreg machine. During employ, first melt the epoxy resin and coat it on the special paper with sizing machine, then composite the paper with strengthen material（carbon fiber, glass fiber, aramid fiber）by prepreg machine, heat and smooth it through the contact roller, make the glue evenly penetrate into the strengthen material, it has high quality and production, with extensive use.

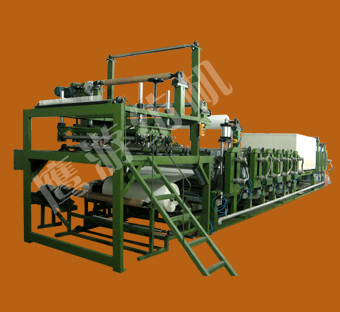

热熔预浸机
一、用途：适用于纤维(3K,6K,12K碳
二、主要技术参数
1、基材宽度：1000mm
2、使用树脂：热熔环氧树脂
3、增强材料种类
纤维：(3K,6K,12K碳纤维、玻璃纤维、芳纶纤维)
4、纱筒数量：252支
5、最高工作车速：10m/min
6、退卷筒心直径 内径：φ76min 外径：φ100min
7、退卷最大直径：φ600min
8、成品收卷筒心直径 内径：φ300mm
三、主要结构特点
热预浸机主要由纱架、导纱架、集束展平、收放卷装置、压延贴合装置、制冷保温箱、牵引复合装置、热油加热循环装置、压缩空气系统及电气传动控制系统等部分组成。
hot-melt prepreg machine
2.1 use: suitable for all kinds of prepreg material by compositing carbon fiber, glass fiber, aramid fiber(3k, 6k, 12k) with hot- melt epoxy resin from sizing machine, rolling and winding, then cover the surface with a piece of polyethylene film or printing film.
2.2 main parameter:
Material width: 1000mm
Resin: hot- melt epoxy resin
Strengthen material: carbon fiber, glass fiber, aramid fiber (3k, 6k, 12k)
Tube head: 252 pcs
Max. Working speed: 10
Back winding diameter: inner ￠76mm outer ￠100mm
Max. Back winding diameter: ￠600mm
Finished product winding diameter: ￠300mm
1.4 main features:
Hot- melt prepreg machine is made of yarn frame, yarn guide frame, bunch paving unit, rolling part and winding device, driving unit, oil heater, refrigeration box, air pression and electrical controlling systems, etc.
电话：0518-85915139 85913340
传真：0518-85915999
邮编：222062
地址：江苏省连云港市海州开发区振兴路1号
网址：http://www.lygtm.com/
