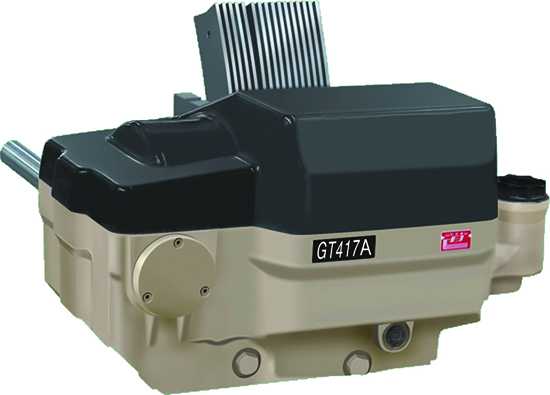

GT417A旋转式高速电子多臂装置

·用途：适用于各类高档高速喷水、喷气织机

·控制：电子式

·最大循环纬数：12800纬

·安装：上、下置式（左、右手车）

·规格：16片；12mm间距

·适用织机筘幅：1650-4600mm

TYPE GT417A HIGH-SPEED ELECTRONICALLY CONTROLLED ROTARY DOBBY

·Features:Type GT417A High-speed Electronically Controlled Rotary Dobby

·Use: This device is applicable to various kind of high performance air-jet and water-jet looms

·Control method: electronically

·Weft storage: 12800

·Mounting: in high and low position (left and right side) Lifting ·units: 16

·Pitch: 12mm

Suitable reed width: 1650~4600mm

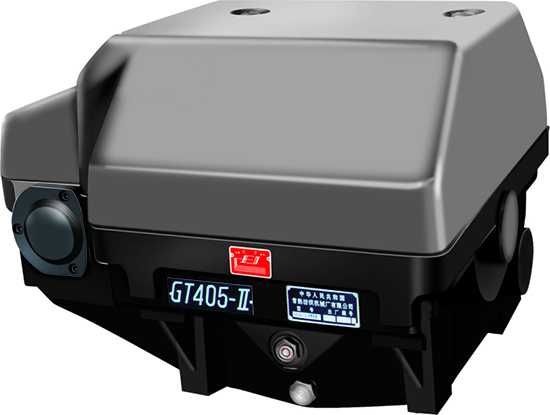

GT405-Ⅱ旋转式电子多臂装置

·用途：适用于各类高性能剑杆织机

·控制：与织机同步之独立控制装置、电子式

·存储容量：12800纬

·安装：下置式（左、右手车）

·规格：20片；12mm间距

·适用织机筘幅：1650-4600mm

Type GT405-Ⅱ Rotary Elect ronic Dobby

·Use: This device is applicable to various kind of high-performance rapier looms

·Control method:  The electronically inde-pendent controlling device synchronizing with the looms

·Weft storage: 12800

·Mounting: In low position (Left and right side)·

Lifting units: 20

·Pitch: 12mm

·Suitable reed width: 1650-4600 mm

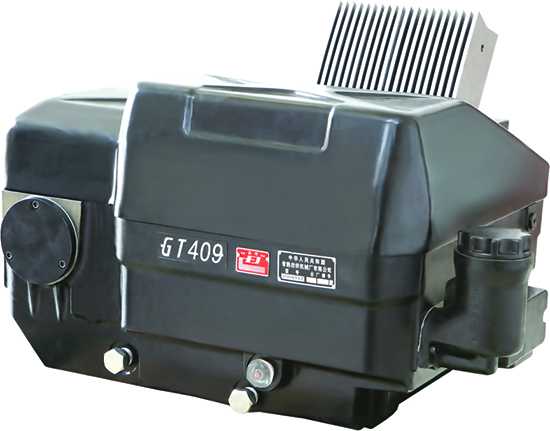

GT409旋转式高速电子多臂装置

·用途：适用于各类高档高速剑杆织机

·控制：电子式·最大循环纬数：12800纬

·安装：下置式（左、右手车）

·规格：16、20、24片；12mm间距

·适用织机筘幅：1650～4600mm

Type GT409 Highspeed Electronically Controlled Rotary Dobby

·Use:Suitable for various kind of advanced rapier looms

·Control method:electronic

·Endless wefts:12800

·Mount method:in low position(left and right side)

·Pitch:12mm

·Lifting units:16、20、24

·Suitable reed width:1650～4600mm

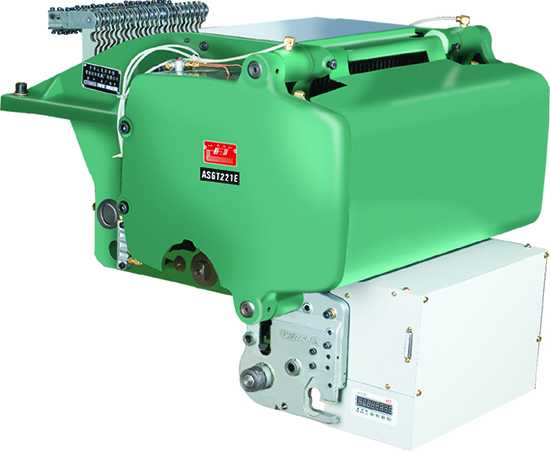

ASGT221E消极式电子多臂装置

·用途：适用于各类中低档、中速剑杆织机

·控制：电子式

·安装：上置式（左、右手车）

·规格：20-24片；12mm间距

·适用织机筘幅：1400-2300mm

·最大循环纬数：64000纬

·附加功能：选色、简易送经、停送停卷等。

Type ASGT221E Negative Electronic Dobby

·Use: This device is applicable to various kind of low and middle level

.middle speed rapier looms

·Control method: Electronic formula

·Mounting: In high position and for left and right side

·Lifting units: 20、24

·Pitch: 12mm

·Suitable reed width:1400-2300mm

·Endless wefts: 64000

·Other functions: color-selecting,simple warp let-off and stop letting-off and taking up etc.

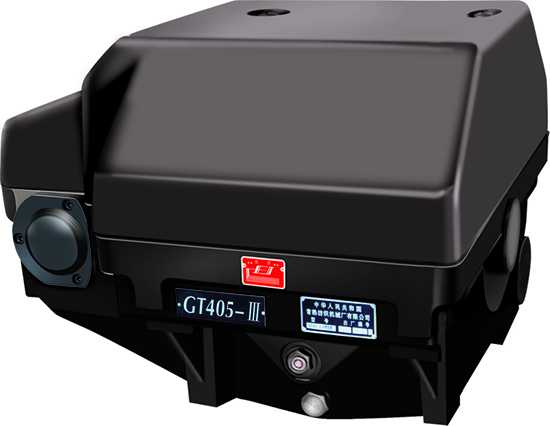

GT405-Ⅲ(GT408)型旋转式电子多臂装置

·用途：适用于各类中高档剑杆织机

·控制：与织机同步之独立控制装置

·储存容量：12800纬

·安装：下置式（左、右）

·规格：20片

·刀片间距：12mm

Type GT405-Ⅲ(GT408)  High-speed Electronically Controlled Rotary Dobby

·Use: This device is applicable to various kind of middle and high level rapier looms

·Control method: the electronically independent controlling device synchronizing with the looms

·Weft storage: 12800

·Mounting: in low position (left and right side)

·Lifting units: 20

·Pitch: 12mm

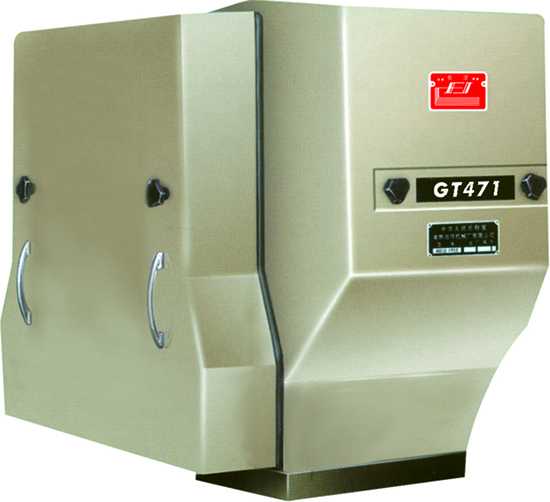

GT471电子多臂装置

·用途：适用于各类低速普及型和中速剑杆织机

·控制：电子式

·最大循环纬数：12000纬

·安装：上置式

·规格：20、24片；12mm间隙

·适用织机筘幅：1200～2500mm

Type GT471 Electrnically Control-led Dobby

·Use:Suitable for low and middle-level rapier looms

·Control method :electronic

·Endless wefts:12000

·Mounting:in high position

·Pitch:12mm

·Lifting units:20、24

·Suitable reed width:1200～2500

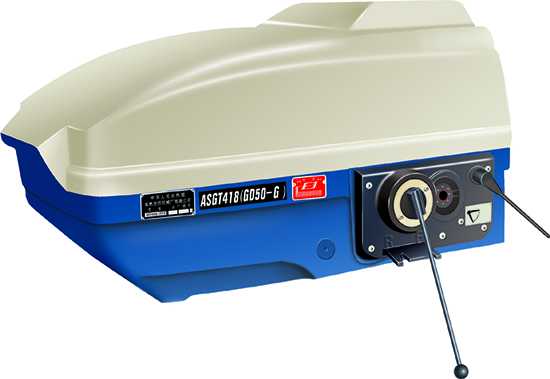

ASGT418 （GD50-G）高速喷射多臂装置

·用途：适用于各类高性能喷水、喷气织机

·控制：循环纹钉、纹板式

·安装：上置式（右手车）

·规格：16片；12mm间距

·适用织机筘幅：1500-3500mm

Type ASGT418(GD50-G) highspeed Jet Dobby

·Use: This device is applicable to various kind of high-performance water-jet and air-jet looms

·Control method: Cycle peg and card

·Mounting: In high position and for right side

·Lifting units: 16

·Pitch: 12mm

·Suitable reed width: 1500-3500 mm

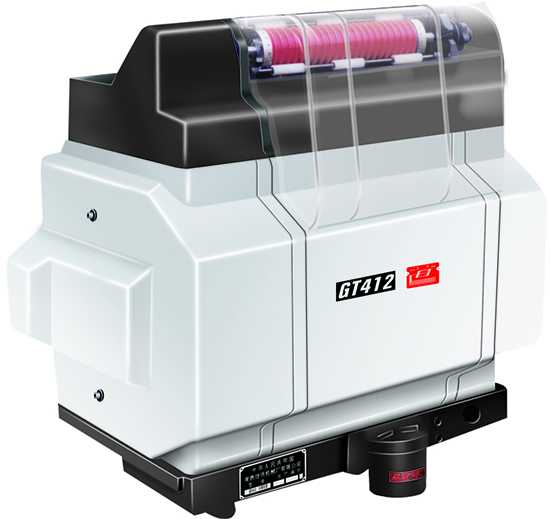

GT412积极式剑杆多臂装置

·用途：适用于各类高性能中高档剑杆片梭织机

·控制：连续纹纸式

·安装：上、下置式（左、右手车）

·规格：12、16、20片；12mm间距

·适用织机筘幅：1650-4600mm

Type GT412 PositIve Rapier Dobby

·Use: This device is applicable to various kind of middle and high level rapier and projectile looms

·Control method: Continuous card paper

·Mounting: In high and low position and for left and right side

·Lifting units: 12,16,20

·Pitch: 12mm

·Suitable reed width: 1650-4600 mm

SGT221、ASGT221-Ⅱ消极式剑杆多臂装置

·用途：适用于各类中低档、中速剑杆织机

·控制：循环纹纸式

·安装：上置式（左、右手车）

·规格：20、24片；12mm间距

·适用织机筘幅：1400-2300mm

Type ASGT221、ASGT221-Ⅱ Negative Rapier Dobby

·Use: This device is applicable to various kind of low and middle level,middle speed rapier looms

·Control method: Cycle card paper

·Mounting: In high position and for left and right side·Lifting units: 20、24

·Pitch: 12 mm

·Suitable reed width: 1400-2300 mm

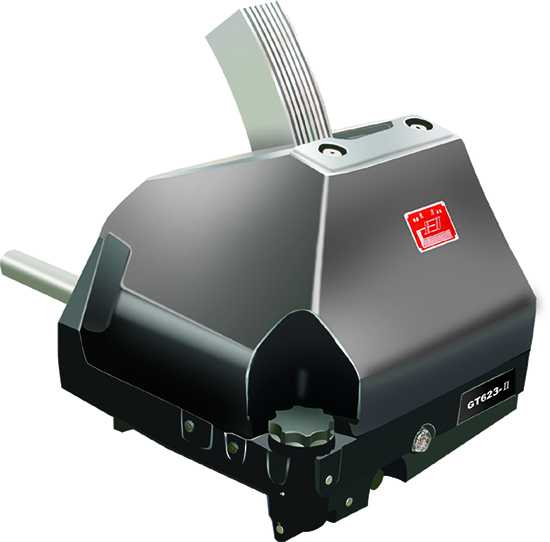

GT623/GT623-Ⅱ高速积极式凸轮开口装置

·开口型式：积极式共轭凸轮，全清晰梭口

·置式：下置式·综框片数：4-8片

·综框间距：12mm

·平综装置：GT623型：自动；GT623-Ⅱ型：手动

·适应品种：平纹、斜纹、缎纹等品种

·适用织机：JAT610/710、ZAX/ZAX-E、GA706/708、TT-800等进口、国产系列喷气织机

·适用织机筘幅：1500～3600mm

TYPE GT623/GT623-ⅡHigh-Speed Positive Cam Motion Device·Type of shedding:positive conjugate cam,full clear open

·Mounting method:in low position

·Cam numbers:4-8

·Pitch:12mm

·Heald reversing motion:GT623:automatic GT623-Ⅱ:mechanical

·Fabrics to be woven:plain、twill and satin

·Suitable looms:foreign and domestic air-jet looms,such as JAT610/710,ZAX/ZAX-E、GA706/708，TT- 800 etc.

·Suitable reed width:1500～3600mm

S1301积极式凸轮开口装置

·开口形式：积极式共轭凸轮，能实现对称和不对称的清晰梭口。

·综框片数：4-10片

·综框间距12mm

·适应品种：平纹、斜纹、缎纹等品种

·适用织机门幅150-360cm

·适应各类喷气及剑杆织机

S1301 POSITIVE CAM MOTION DEVICE

·Type: Positive conjugate cam carries out symmetry and asymmetry clear sheds

·Cam numbers: 4-10

·Pitch: 12mm

·Fabrics to be woven: plain, twill and satin

·Suitable reed width: 150-360cm

·Suitable looms: various kinds of air-jet and rapier looms

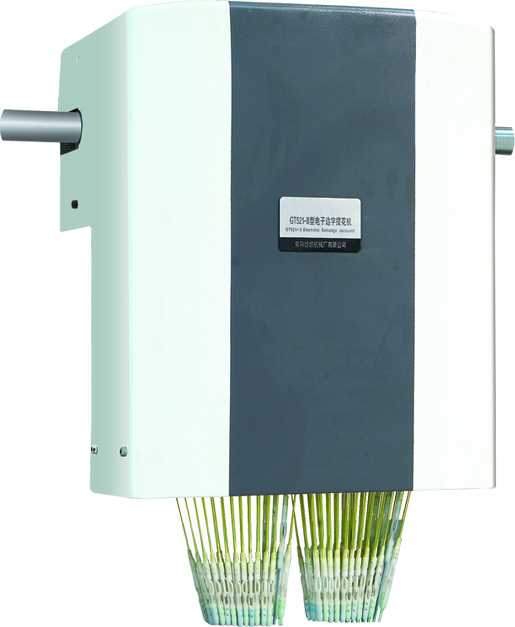

GT521-Ⅱ电子边字提花装置

·用途：适用于各类中高档剑杆、片梭、喷气及喷水织机，织造棉、毛、丝、麻等原料的各种边字提花织物。

·控制：电子式

·置式：上置式

·提花针数：72、144针/头

·最大开口高度：90mm

Type GT521-ⅡElectronic Selvedge Jacquard

·Use: Suitable for various kind of high-level rapier, projectile, air-jet looms and water-jet to weave various selvedge jacquard clothes of cotton, woolen, silk and flax etc.

·Controlling methods: Electroniclly control

·Mounting: In high position

·Lifting needles: 72、144/head

·Sheding height(max): 90mm

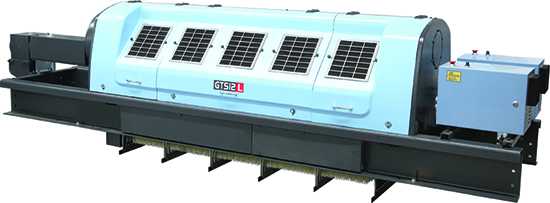

GT512L高速电子提花机

·用途：适用于喷气、剑杆、片梭等无梭织机，织造各种大提花织物

·控制：电子式、CFJC600型独立控制箱

·置式：上置式·提花针数：1408、2816、3072、4096、5120、6144、10240针

·开口型式：复动式全清晰梭口

·最大循环纬数：15MB（单个花样容量）

Type GT512L High- Perf or mance Electronic  Jacquard

·Use:suitable for various kinds of shuttleless  loom (air-jet、rapier and projectile) to weave jacquard f

abrics

·Control method:electronic (indepen  dent CFJC600 controlling device)

·Mounting:in high position

·Lifting needles:1408、2816、3072、4096、5120、6144、10240

·Type of shedding:double lift, full clear open

·Weft storage:15MB (for single pattern)

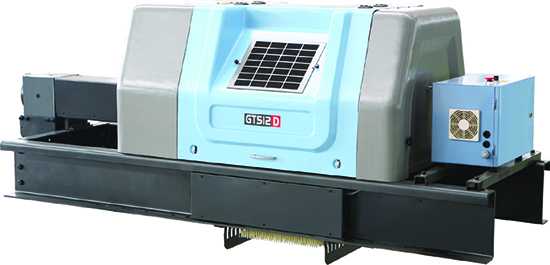

GT512D高速电子提花机

·用途：适用于喷气、剑杆、片梭等无梭织机，织造各种大提花织物

·控制：电子式，CFJC600型独立控制箱

·置式：上置式

·提花针数：1408、2816针

·开口型式：复动式全清晰梭口

·最大循环纬数：15MB（单个花样容量）

Type GT512D High-Performance Electronic  Jacquard

·Use:suitabe for various kind of shuttleless loom (air-jet、rapier and projectile) to weave jac-quard fabrics

·Control method:electronic (independent CFJC600 controlling device synchronizing with the loom)

·Mounting:in high position

·Lifting needles:1408、2816

·Type of shedding:double lift, full clear open

·Weft storage:15MB(for single pattern)

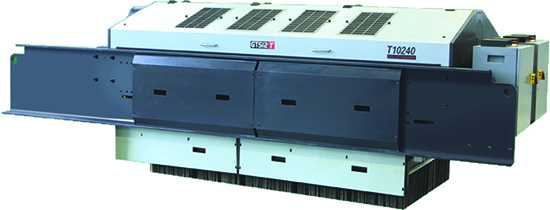

GT512T高速电子提花机

·用途：适用于喷气、剑杆、片梭等无梭织机，织造各种大提花织物

·控制：电子式

·置式：上置式

·提花针数：6144、8192、10240、12288、14336针

·开口型式：复动式全清晰梭口

TYPE GT512T HIGH-PERFORMANCE ELECTRONIC JACQUARD

·Use: suitable for air-jet、 rapier and projectile looms to weave various jacquard fabrics

·Pattern controlling method: electronic

·Mounting: in high position

·Lifting needles: 6144、8192、10240、12288、14336

·Type of shedding: double lift，full clear open

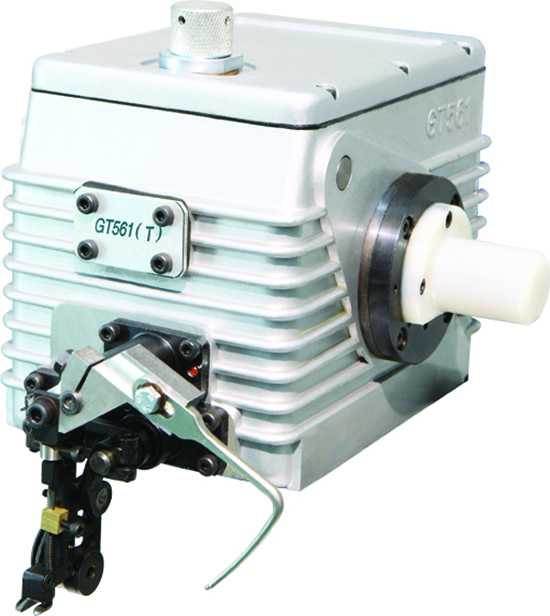

GT561 折入边装置

·用途：适用于FAST系列、GTM系列、THAMA系列、GA747系列国产及进口织机

·安装：上置式（左、中、右）

·折入边区域宽：12mm

Type GT561 Tucking-in Device

·Use: This device is mounted onto the  FAST series,the GTM series, and the THAMA series and the GA747 series domestic and foreign looms

·Mounting: In high position ( left , middle  and right )

·Width of selvedge zone: 12 mm

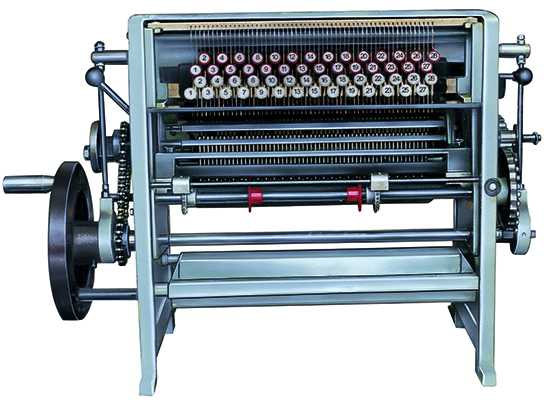

SGU001 纹板冲孔机

·用途：按织造工艺冲制的信号纹纸，适用于ASGT221、ASGT222、GT412等复动式多臂及同类进口产品

·规格：冲头直径：Φ4.5 mm

       冲头纵向间距：3 mm

       冲头横向间距：12 mm

·适用棕框页数：≤28页

Type SGU001 Card Puncher

·Use: The signal card paper punched in conformity with the weaving technology by this machine can be used on double-lift Dobby such as ASGT221,ASGT222,GT412, and the same imported products

·Diameter of drift : Φ4.5 mm

·Longitudinal distance between drift holes: 3 mm

·Transversal distance between drift holes: 12mm

·Lift units: ≤28

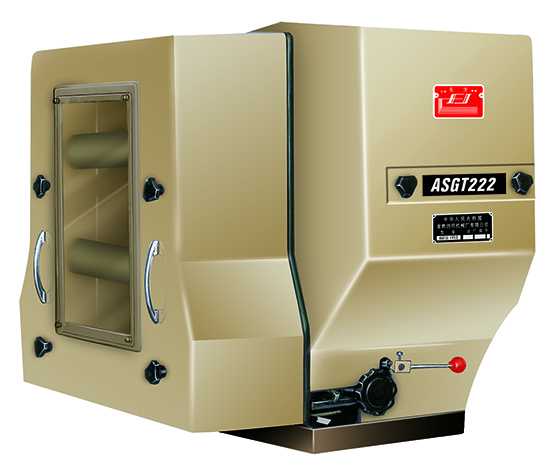

ASGT222、ASGT222-II消极式剑杆多臂装置

·用途：适用于各类中档、高档剑杆织机

·控制：循环纹纸式

·安装：上置式（左、右手车）

·规格：20：12mm间距

·适用织机筘幅：1200～2300mm

Type ASGT222、ASGT222-II Negative Rapier Dobby

·Use: This device is applicable to various kind of middle level, high speed rapier looms

·Control method: Cycle card paper

·Mounting: In high position and for left and right side

·Lifting units: 20

·Pitch: 12 mm

·Suitable reed width: 1400-2300 mm
