HY系列喷水织机---双经轴机型

发布时间：2013-07-12

【TTMN讯编辑：黄岚】

HY系列喷水织机----双经轴机型

HY series water jet loom-- Double warp beam

双经轴喷水织机在HY7系列喷水织机成熟的技术基础上，融入新技术与先进的织机理念，设计研发而成。幅宽：150cm~360cm。单喷﹑双喷或三喷纬入装置，双层经轴，双伺服电机，电子送经,机械或电子卷取，配置了电子多臂或凸轮开口装置，能够保证双层织物的几种不同经纱张力的平衡，解决了中等厚重织物和高密度织物的织造稳定性及双层组织织物布面平整度的问题。织物的适应范围在不断的扩大，符合不断创新的市场需求,是客户在竞争中取胜的可靠保证。

Double warp beam type water jet loom is designed and developed based on HY7series water jet loom. It combined with new technology and advanced idea of the loom. The width is from 150cm to 360cm. This loom is equipped with a single nozzle, two or three nozzle weft insertion device, double warp beam, dual servo motor, electronic let-off, mechanical or electronic take-up system, and electronic dobby or cam shedding unit, so it is able to ensure the equalization of strain of different warps, the weaving stability of medium heavy fabric and high-density fabric, and the plainness of two-layer fabric. The range of applying of fabric is widening continually. Meeting the changing market is the reliable guarantee to win in competition.

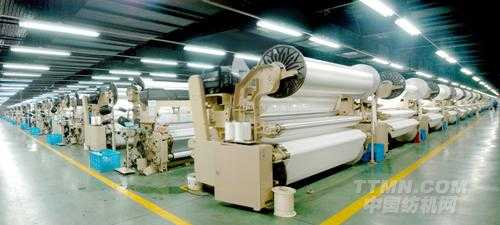

HY7系列织机---双经轴机型客戶应用

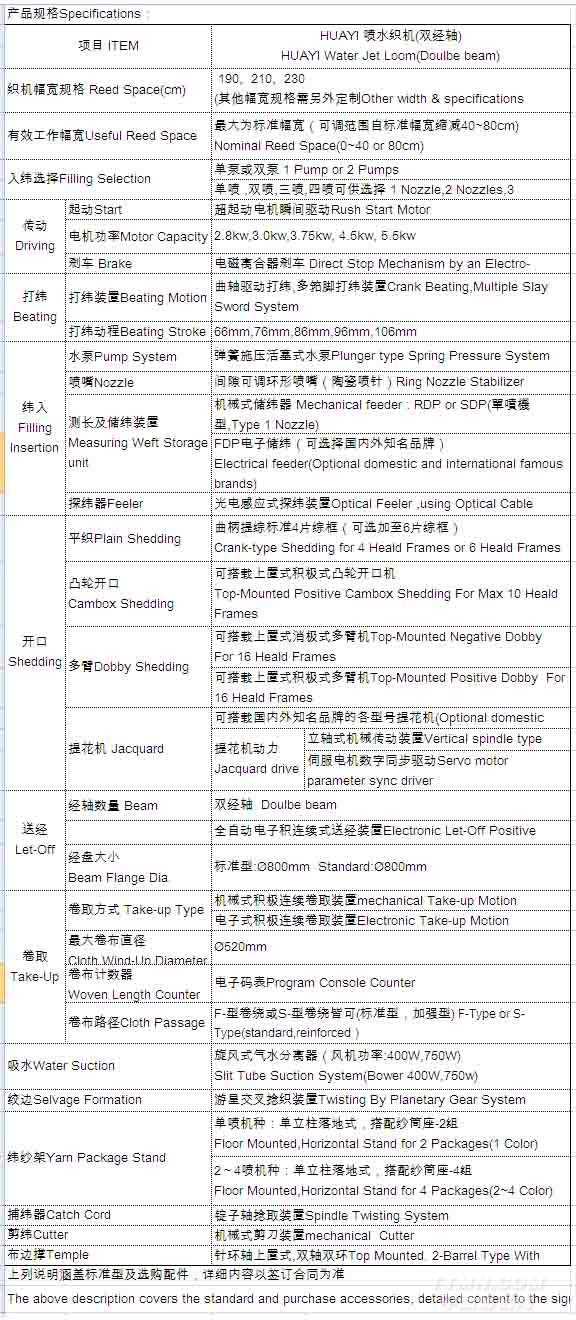

HY7系列织机---双经轴机型规格表
